Description
Quick Specifications
|
|
|
|
|
|
|
|
|
|
|
|
Manufacturer Specifications
|
General Specifications
|
|
|
Name
|

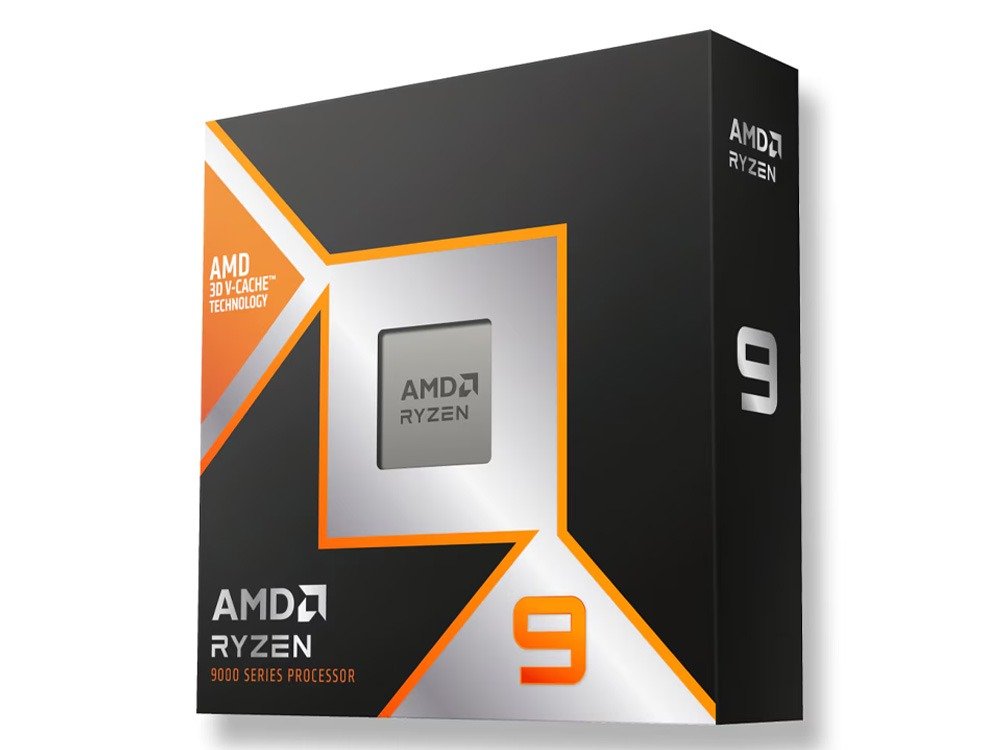

AMD Ryzenâ„¢ 9 9900X3D |
|
Family
|
Ryzen |
|
Series
|
Ryzen 9000 Series |
|
Form Factor
|
Desktops , Boxed Processor |
|
Market Segment
|
Enthusiast Desktop |
|
AMD PRO Technologies
|
No |
|
Regional Availability
|
Global |
|
Former Codename
|
Granite Ridge AM5 |
|
Architecture
|
Zen 5 |
|
# of CPU Cores
|
12 |
|
Multithreading (SMT)
|
Yes |
|
# of Threads
|
24 |
|
Max. Boost Clock
|
Up to 5.5 GHz |
|
Base Clock
|
4.4 GHz |
|
L1 Cache
|
960 KB |
|
L2 Cache
|
12 MB |
|
L3 Cache
|
128 MB |
|
Default TDP
|
120W |
|
Processor Technology for
CPU Cores |
TSMC 4nm FinFET |
|
Processor Technology for
I/O Die |
TSMC 6nm FinFET |
|
Package Die Count
|
3 |
|
Unlocked for
Overclocking |
Yes |
|
AMD EXPOâ„¢ Memory
Overclocking Technology |
Yes |
|
Precision Boost
Overdrive |
Yes |
|
Curve Optimizer Voltage
Offsets |
Yes |
|
AMD Ryzenâ„¢ Master
Support |
Yes |
|
CPU Socket
|
AM5 |
|
Supporting Chipsets
|
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
|
CPU Boost Technology
|
Precision Boost 2 |
|
Instruction Set
|
x86-64 |
|
Supported Extensions
|
AES , AMD-V , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SHA , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64 |
|
Thermal Solution (PIB)
|
Not Included |
|
Recommended Cooler
|
Liquid cooler recommended for optimal performance |
|
Max. Operating
Temperature (Tjmax) |
95°C |
|
*OS Support
|
Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
|
Connectivity
|
|
|
Native USB 4 (40Gbps)
|
4 |
|
Native USB 3.2 Gen 1
(5Gbps) |
1 |
|
PCI Express® Version
|
PCIe® 5.0 |
|
Native PCIe® Lanes
(Total/Usable) |
28 , 24 |
|
NVMe Support
|
Boot , RAID0 , RAID1 , RAID5 , RAID10 |
|
System Memory Type
|
DDR5 |
|
Memory Channels
|
2 |
|
Max. Memory
|
192 GB |
|
System Memory Subtype
|
UDIMM |
|
Max Memory Speed
|
2x1R
|
|
DDR5-5600
|
|
|
2x2R
|
|
|
DDR5-5600
|
|
|
4x1R
|
|
|
DDR5-3600
|
|
|
4x2R
|
|
|
DDR5-3600
|
|
|
ECC Support
|
Yes (Requires mobo support) |
|
Graphics Capabilities
|
|
|
Graphics Model
|
AMD Radeonâ„¢ Graphics |
|
Graphics Core Count
|
2 |
|
Graphics Frequency
|
2200 MHz |
|
USB Type-C® DisplayPort™
Alternate Mode |
Yes |
|
Product IDs
|
|
|
Product ID Boxed
|
100-100001368WOF |
|
Product ID Tray
|
100-000001368 |
|
Key Features
|
|
|
Supported Technologies
|
AMD EXPOâ„¢ Technology , AMD Ryzenâ„¢ Technologies |
