Description
Quick Specifications
|
|
|
|
|
|
|
|
|
|
|
|
Manufacturer Specifications
|
General Specifications
|
|
|
Name
|

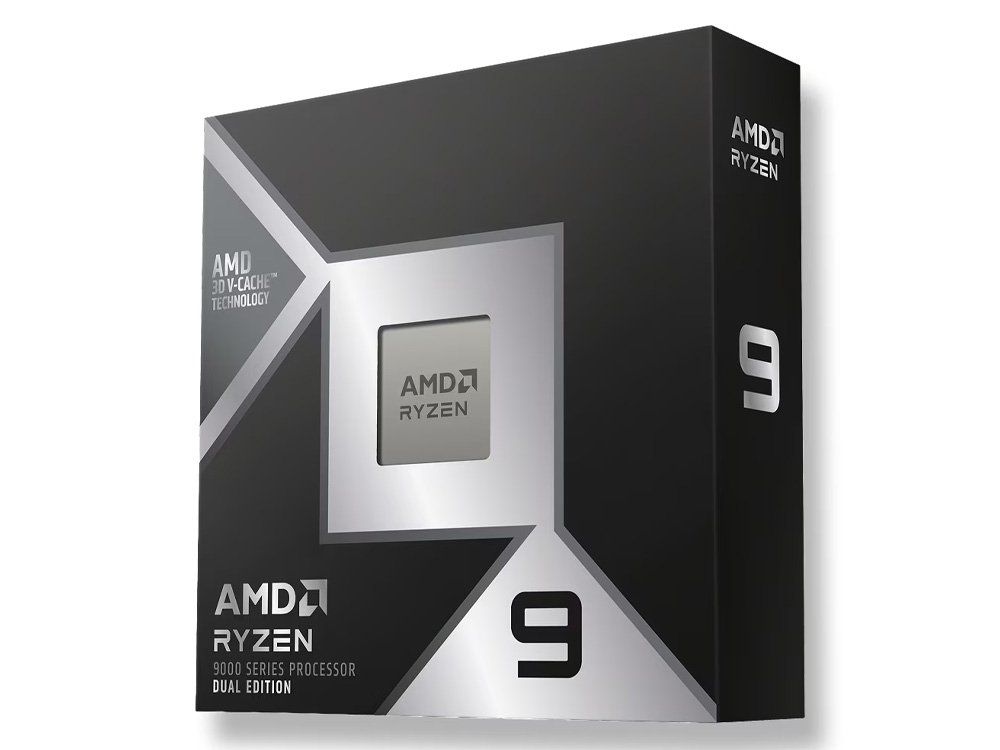

AMD Ryzenâ„¢ 9 9950X3D2 Dual Edition |
|
Family
|
Ryzen |
|
Series
|
Ryzen 9000 Series |
|
Form
Factor |
Desktops, Boxed Processor |
|
Market
Segment |
Enthusiast Desktop |
|
Regional
Availability |
Global |
|
Former
Codename |
Granite Ridge AM5 |
|
Processor
Architecture |
Zen 5 |
|
# of CPU
Cores |
16 |
|
Multithreading
(SMT) |
Yes |
|
# of
Threads |
32 |
|
Max.
Boost Clock |
Up to 5.6 GHz |
|
Base
Clock |
4.3 GHz |
|
L1 Cache
|
1280 KB |
|
L2 Cache
|
16 MB |
|
L3 Cache
|
192 MB |
|
Default
TDP |
200W |
|
Processor
Technology for CPU Cores |
TSMC 4nm FinFET |
|
Processor
Technology for I/O Die |
TSMC 6nm FinFET |
|
Package
Die Count |
3 |
|
Unlocked
for Overclocking |
Yes |
|
AMD
EXPOâ„¢ Memory Overclocking Technology |
Yes |
|
Precision
Boost Overdrive |
Yes |
|
Curve
Optimizer Voltage Offsets |
Yes |
|
AMD
Ryzenâ„¢ Master Support |
Yes |
|
CPU
Socket |
AM5 |
|
Supporting
Chipsets |
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
|
CPU
Boost Technology |
Precision Boost 2 |
|
Instruction
Set |
x86-64 |
|
Supported
Extensions |
AES , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64 |
|
Thermal
Solution (PIB) |
Not Included |
|
Recommended
Cooler |
Liquid cooler recommended for optimal performance |
|
Max.
Operating Temperature (Tjmax) |
95°C |
|
*OS
Support |
Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
|
Connectivity
|
|
|
Native
USB 3.2 Gen 2 (10Gbps) |
4 |
|
Native
USB 2.0 (480Mbps) |
1 |
|
PCI
Express® Version |
PCIe® 5.0 |
|
Native
PCIe® Lanes (Total/Usable) |
28 , 24 |
|
NVMe
Support |
Boot , RAID0 , RAID1 , RAID5 , RAID10 |
|
System
Memory Type |
DDR5 |
|
Memory
Channels |
2 |
|
Max.
Memory |
256 GB |
|
System
Memory Subtype |
UDIMM |
|
Max
Memory Speed |
|
|
2x1R
|
DDR5-5600
|
|
2x2R
|
DDR5-5600
|
|
4x1R
|
DDR5-3600
|
|
4x2R
|
DDR5-3600
|
|
ECC
Support |
Yes (Requires mobo support) |
|
Graphics Capabilities
|
|
|
Graphics
Model |
AMD Radeonâ„¢ Graphics |
|
Graphics
Core Count |
2 |
|
Graphics
Frequency |
2200 MHz |
|
USB
Type-C® DisplayPort™ Alternate Mode |
Yes |
|
Product IDs
|
|
|
Product
ID Boxed |
100-100001978WOF |
|
Product
ID Tray |
100-000001978 |
|
Security
|
|
|
AMD
Secure Processor |
Yes |
|
AMD
Platform Secure Boot |
Yes |
|
Windows
Secure Boot |
Yes |
|
UEFI
Secure Boot |
Yes |
|
Windows
Device Guard |
Yes |
|
Supervisor
Mode Execution Prevention (SMEP) |
Yes |
|
Guest
Mode Execution (GMET) Trap |
Yes |
|
Virtualization-Based
Security (VBS) |
Yes |
|
Windows
Secured-Core PC |
Yes |
|
Firmware
TPM |
Yes |
|
AMD-V
(SVM) |
Yes |
|
AMD AVIC
(Interrupt Virtualization) |
Yes |
|
AMD-Vi
(I/O MMU Virtualization) |
Yes |
|
Second
Level Address Translation (SLAT) |
Yes |
|
Advanced
Encryption Standard New Instructions (AES-NI) |
Yes |
|
AMD
Enhanced Virus Protection (NX bit) |
Yes |
|
AMD
Shadow Stack |
Yes |
