Description

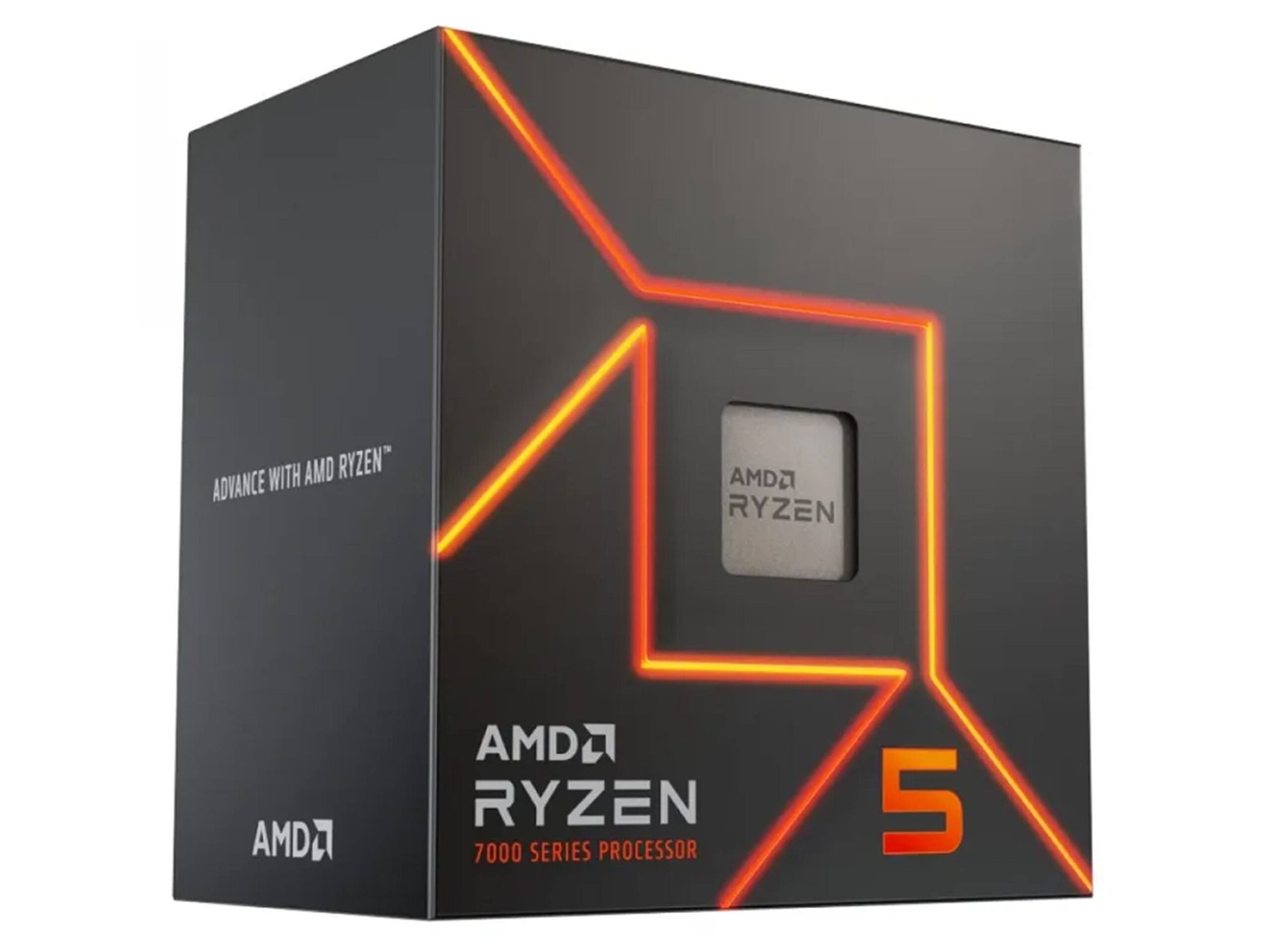

| Name | AMD Ryzenâ„¢ 5 7500F |
| Family | Ryzen |
| Series | Ryzen 7000 Series |
| Form Factor |
Desktops, Boxed Processor |
| Market Segment |
Enthusiast Desktop |
| AMD PRO Technologies | No |
| Regional Availability | Global |
| Former Codename | Raphael AM5 |
| Processor Architecture | Zen 4 |
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 5 GHz |
| Base Clock | 3.7 GHz |
| L1 Cache | 384 KB |
| L2 Cache | 6 MB |
| L3 Cache | 32 MB |
| Default TDP | 65 W |
| Processor Technology for CPU Cores | TSMC 5 nm FinFET |
| Processor Technology for I/O Die | TSMC 6 nm FinFET |
| CPU Compute Die (CCD) Size | 71 mm² |
| I/O Die (IOD) Size | 122 mm² |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| AMD EXPOâ„¢ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzenâ„¢ Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets |
A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Technology |
Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions |
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) |
AMD Wraith Stealth |
| Thermal Solution (MPK) |
AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) | 95°C |
| Launch Date | 07/22/2023 |
| OS Support |
Windows 11 – 64-Bit, Windows 10 – 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
⚡Heads up! We’re racing to hit our KPIs 🚀
So you’ll see products listed first without the full specs (yet). You can still grab them now, and check back a little later—descriptions are on the way!
Quick Specifications
|
|
|
|
|
|
Manufacturer Specifications
| Name | AMD Ryzenâ„¢ 5 7500F |
| Family | Ryzen |
| Series | Ryzen 7000 Series |
| Form Factor |
Desktops, Boxed Processor |
| Market Segment |
Enthusiast Desktop |
| AMD PRO Technologies | No |
| Regional Availability | Global |
| Former Codename | Raphael AM5 |
| Processor Architecture | Zen 4 |
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 5 GHz |
| Base Clock | 3.7 GHz |
| L1 Cache | 384 KB |
| L2 Cache | 6 MB |
| L3 Cache | 32 MB |
| Default TDP | 65 W |
| Processor Technology for CPU Cores | TSMC 5 nm FinFET |
| Processor Technology for I/O Die | TSMC 6 nm FinFET |
| CPU Compute Die (CCD) Size | 71 mm² |
| I/O Die (IOD) Size | 122 mm² |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| AMD EXPOâ„¢ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzenâ„¢ Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets |
A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Technology |
Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions |
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) |
AMD Wraith Stealth |
| Thermal Solution (MPK) |
AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) | 95°C |
| Launch Date | 07/22/2023 |
| OS Support |
Windows 11 – 64-Bit, Windows 10 – 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
