Description
Quick Specifications
|
|
|
|
|
|
|
|
|
|
|
|
Manufacturer Specifications

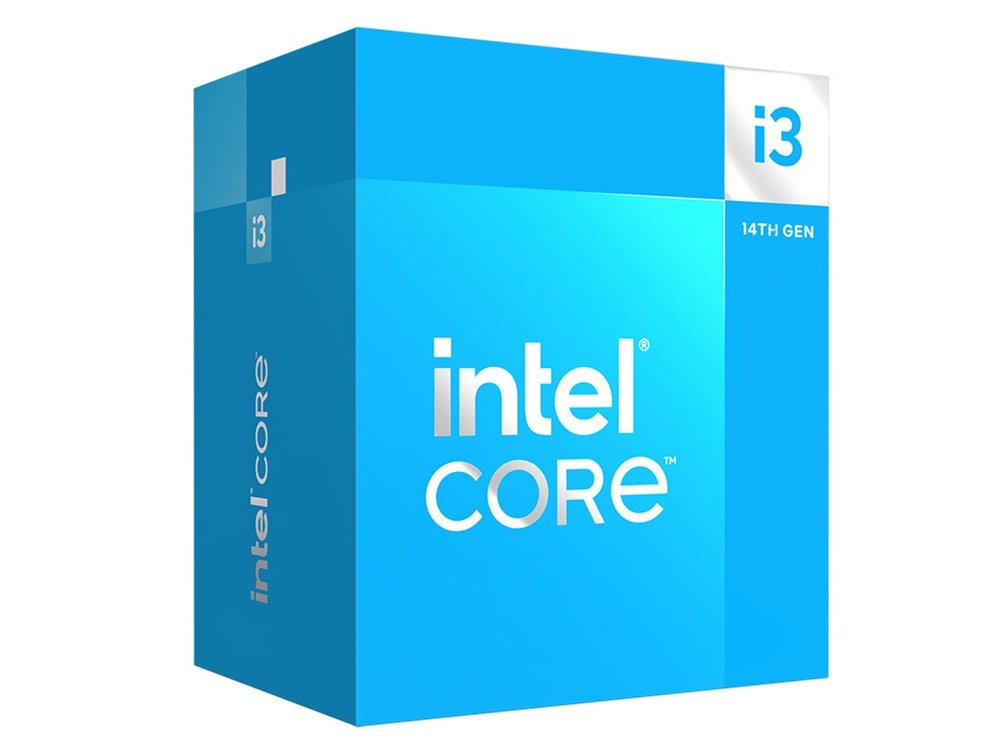

| Intel® Core™ i3 processor 14100 (12M Cache- up to 4.70 GHz) | |
| Essentials | |
| Product Collection | Intel® Core™ i3 Processors (14th gen) |
| Code Name | Products formerly Raptor Lake |
| Vertical Segment | Desktop |
| Processor Number | i3-14100 |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet |
|
CPU Specifications |
|
| Total Cores | 4 |
| # of Performance-cores | 4 |
| # of Efficient-cores | 0 |
| Total Threads | 8 |
| Max Turbo Frequency | 4.7 GHz |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Performance-core Base Frequency | 3.5 GHz |
| Cache | 12 MB Intel® Smart Cache |
| Total L2 Cache | 5 MB |
| Processor Base Power | 60 W |
| Maximum Turbo Power | 110 W |
|
Memory Specifications |
|
|
Max Memory Size (dependent on memory type) |
192 GB |
| Memory Types | Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
|
GPU Specifications |
|
| GPU Name‡ | Intel® UHD Graphics 730 |
| Graphics Max Dynamic Frequency | 1.5 GHz |
| Graphics Output | eDP 1.4b | DP 1.4a | HDMI 2.1 |
| Execution Units | 24 |
| Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
|
Max Resolution (eDP – Integrated Flat Panel)‡ |
5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3 |
| Multi-Format Codec Engines | 1 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 4 |
| Device ID | 0x4692 |
|
Expansion Options |
|
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1×16+4 | 2×8+4 |
| Max # of PCI Express Lanes | 20 |
|
Package Specifications |
|
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
|
Advanced Technologies |
|
| Intel® Gaussian & Neural Accelerator | 3 |
|
Intel® Deep Learning Boost (Intel® DL Boost) on CPU |
Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology ‡ | 2 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions |
Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
|
Security & Reliability |
|
| Intel® Standard Manageability (ISM) ‡ | Yes |
|
Intel® Control-Flow Enforcement Technology |
Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
|
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ |
Yes |
|
Intel® VT-x with Extended Page Tables (EPT) ‡ |
Yes |
