Description
Quick Specifications
|
|
|
|
|
|
|
|
|
|
|
|
Manufacturer Specifications
|
General Specifications
|
|
|
Name
|

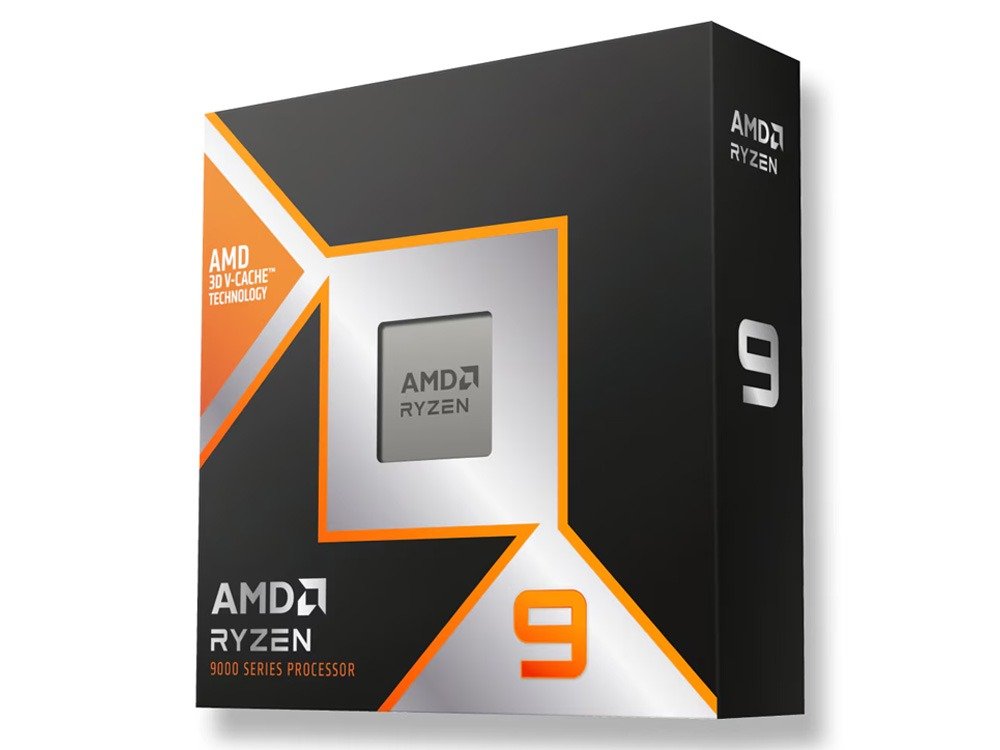

AMD Ryzenâ„¢ 9 9950X3D |
|
Family
|
Ryzen |
|
Series
|
Ryzen 9000 Series |
|
Form Factor
|
Desktops , Boxed Processor |
|
Market Segment
|
Enthusiast Desktop |
|
AMD PRO Technologies
|
No |
|
Regional Availability
|
Global |
|
Former Codename
|
Granite Ridge AM5 |
|
Architecture
|
Zen 5 |
|
# of CPU Cores
|
16 |
|
Multithreading (SMT)
|
Yes |
|
# of Threads
|
32 |
|
Max. Boost Clock
|
Up to 5.7 GHz |
|
Base Clock
|
4.3 GHz |
|
L1 Cache
|
1280 KB |
|
L2 Cache
|
16 MB |
|
L3 Cache
|
128 MB |
|
Default TDP
|
170W |
|
Processor Technology for
CPU Cores |
TSMC 4nm FinFET |
|
Processor Technology for
I/O Die |
TSMC 6nm FinFET |
|
Package Die Count
|
3 |
|
Unlocked for
Overclocking |
Yes |
|
AMD EXPOâ„¢ Memory
Overclocking Technology |
Yes |
|
Precision Boost
Overdrive |
Yes |
|
Curve Optimizer Voltage
Offsets |
Yes |
|
AMD Ryzenâ„¢ Master
Support |
Yes |
|
CPU Socket
|
AM5 |
|
Supporting Chipsets
|
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
|
CPU Boost Technology
|
Precision Boost 2 |
|
Instruction Set
|
x86-64 |
|
Supported Extensions
|
AES , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64 |
|
Thermal Solution (PIB)
|
Not Included |
|
Recommended Cooler
|
Liquid cooler recommended for optimal performance |
|
Max. Operating
Temperature (Tjmax) |
95°C |
|
*OS Support
|
Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
|
Connectivity
|
|
|
Native USB 3.2 Gen 2
(10Gbps) |
4 |
|
Native USB 2.0 (480Mbps)
|
1 |
|
PCI Express® Version
|
PCIe® 5.0 |
|
Native PCIe® Lanes
(Total/Usable) |
28 , 24 |
|
NVMe Support
|
Boot , RAID0 , RAID1 , RAID5 , RAID10 |
|
System Memory Type
|
DDR5 |
|
Memory Channels
|
2 |
|
Max. Memory
|
192 GB |
|
System Memory Subtype
|
UDIMM |
|
Max Memory Speed
|
2x1R
|
|
DDR5-5600
|
|
|
2x2R
|
|
|
DDR5-5600
|
|
|
4x1R
|
|
|
DDR5-3600
|
|
|
4x2R
|
|
|
DDR5-3600
|
|
|
ECC Support
|
Yes (Requires mobo support) |
|
Graphics Capabilities
|
|
|
Graphics Model
|
AMD Radeonâ„¢ Graphics |
|
Graphics Core Count
|
2 |
|
Graphics Frequency
|
2200 MHz |
|
USB Type-C® DisplayPort™
Alternate Mode |
Yes |
|
Product IDs
|
|
|
Product ID Boxed
|
100-100000719WOF |
|
Product ID Tray
|
100-000000719 |
|
Key Features
|
|
|
Supported Technologies
|
AMD EXPOâ„¢ Technology , AMD Ryzenâ„¢ Technologies |
based on 175 ratingsThis score is based on all expert and user reviews that TestFreaks has collected for this product. Reviews and scores are collected from more than 30 countries but only reviews in selected languages are shown below.
| 5 | ☆ | |
| 4 | ☆ | |
| 3 | ☆ | |
| 2 | ☆ | |
| 1 | ☆ |
(Experts)
| 5 | ☆ | |
| 4 | ☆ | |
| 3 | ☆ | |
| 2 | ☆ | |
| 1 | ☆ |
(Users)
- Expert Reviews (3)
- User Reviews (114)
- Write Review
Powered by TestFreaks
WT
It gets VERY hot under load even with an AIO, but idles around 40c so it’s not terrible. Very performant CPU, handles both creativity and gaming with ease.
Plenty of power, Best of both worlds
Hot, Expensive, Mobo mounting is scary…
RE
Extremely fast
Nothing.
MB
A very fast CPU. Fast in both games and productivity applications. It needs a very good cooler. The temperature has peaked above 90C when rendering videos. This is with a twin fan Corsair liquid cooler.
Fast!
Needs a very good cooler.
YS
Nothing to say about this product, as good as the reputation goes!
