| Technical Spec : | |
|
Heatsink Specifications: | |

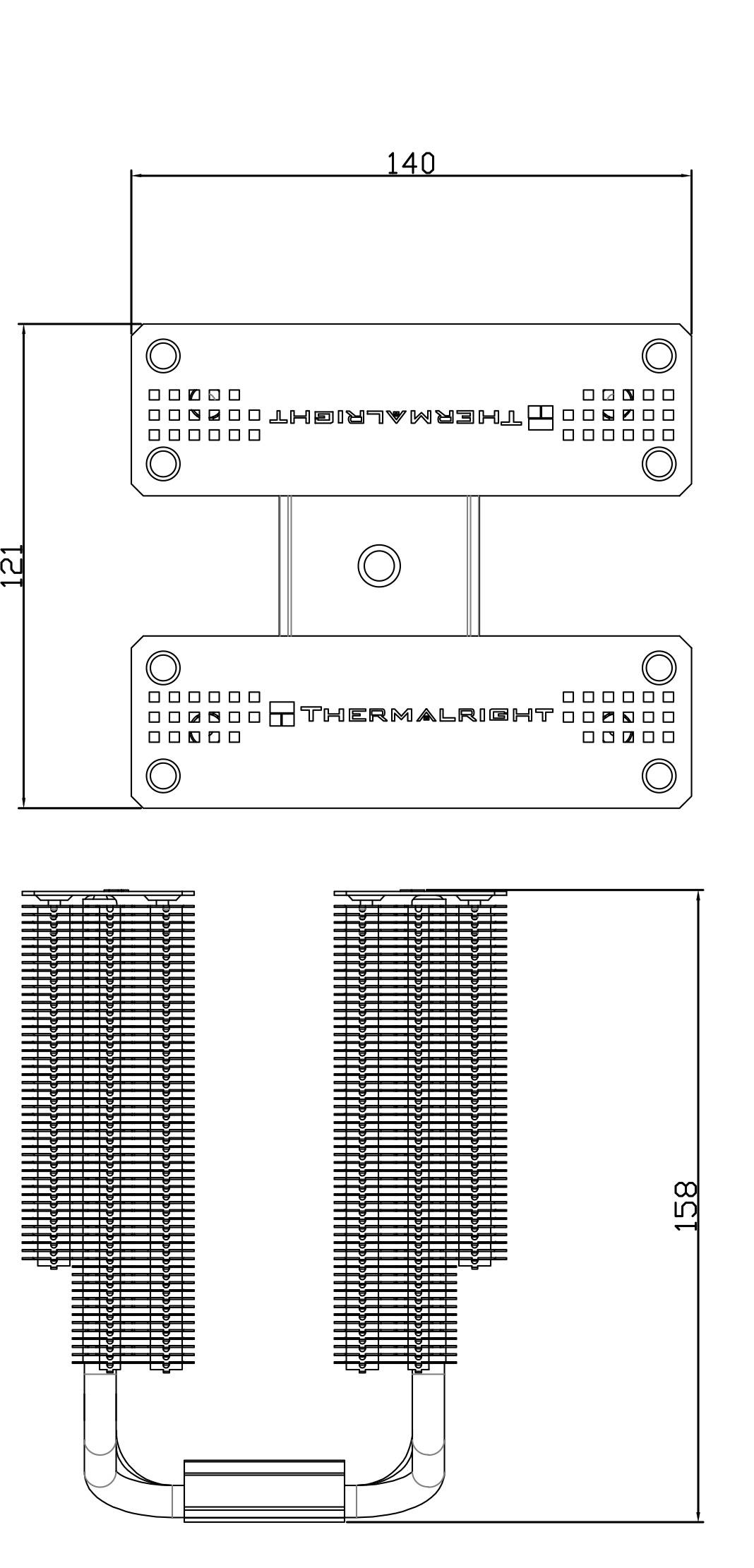

| Dimension： | L140 mm x W121 mm x H158 mm |
| Weight： | 1000g |
|
Heat pipes： | 8mm heatpipe x 4 units |
| Fin： | T = 0.4 mm；Gap=1.6 mm |
| Copper Base： | C1100 Pure copper nickel plated |
| TL-C12 FAN Spec： | |
| Dimension： | L120 mm x W120 mm x H25 mm |
| Weight： | 135g |
| Rated Speed： | 1500 RPM±10% (MAX) |
| Noise Level： | 25.6 dBA |
| Air Flow： | 66.17 CFM (MAX) |
| Air Pressure： | 1.53mm H2O (MAX) |
| Ampere： | 0.20 A |
| Connector： | 4 Pin (PWM Fan connector) |
| Bearing Type : | S-FDB Bearing |
|
TL-D14 FAN Spec： | |
| Dimension： | L140 mm x W152 mm x H27 mm |
| Weight： | 145g |
|
Rated Speed： | 1500 RPM±10% (MAX) |
|
Noise Level： | 25.6 dBA |
|
Air Flow： | 77.8 CFM (MAX) |
|
Air Pressure： | 2.09 mm H2O (MAX) |
| Ampere： | 0.20 A |
| Connector： | 4 Pin (PWM Fan connector) |
|
Bearing Type : | S-FDB Bearing |
