• Technical Spec :
• Heatsink Specifications:

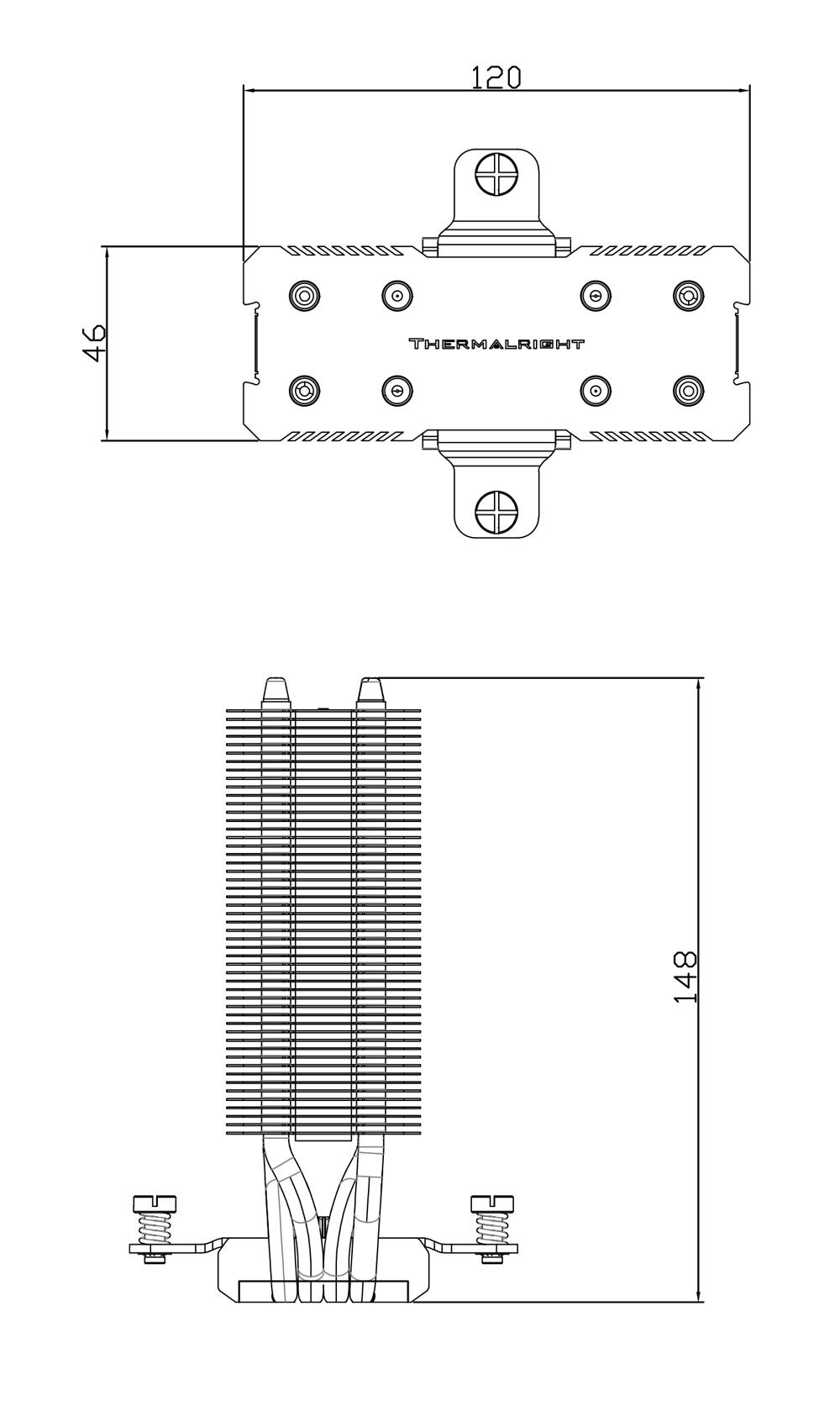

• Dimension: L120 mm x W46 mm x H148 mm
• Weight: 640g(Without Fan)
• Heat pipes: 6mm heatpipe x 4 units

TL-C12C FAN Spec：

• Dimension: L120 mm x W120 mm x H25 mm
• Rated Speed: 1550 RPM±10% (MAX)
• Noise Level: 25.6 dBA
• Air Flow: 66.17 CFM (MAX)
• Air Pressure: 1.53 mm H2O (MAX)
• Ampere: 0.20 A
• Connector: 4 Pin (PWM Fan connector)
• Bearing Type : S-FDB Bearing

TL-C12RB V2 FAN Spec：

• Dimension: L120 mm x W120 mm x H25 mm
• Rated Speed: 1500 RPM±10% (MAX)
• Noise Level: 25.6 dBA
• Air Flow: 58 CFM (MAX)
• Air Pressure: 1.53 mm H2O (MAX)
• Ampere: 0.20 A
• Connector: 4 Pin (PWM Fan connector)
• Bearing Type : S-FDB Bearing
