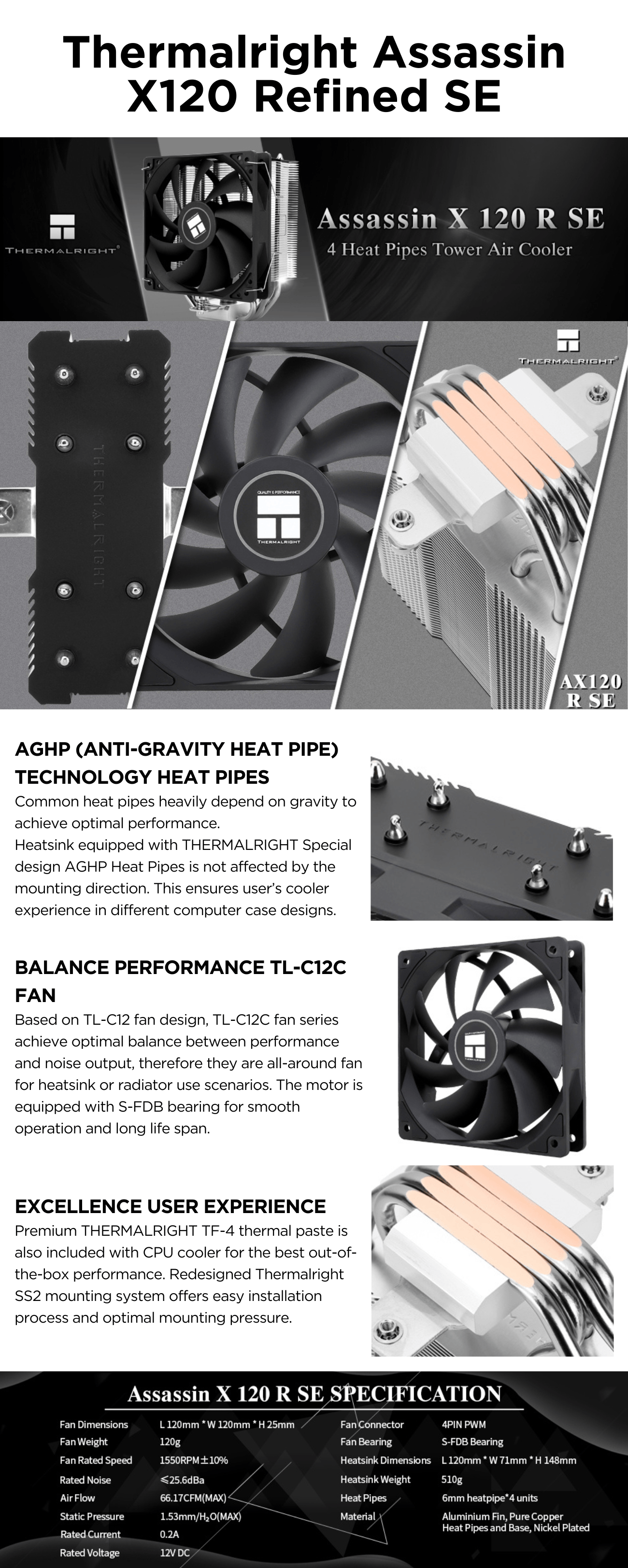

AGHP (ANTI-GRAVITY HEAT PIPE) TECHNOLOGY HEAT PIPES

Common heat pipes heavily depend on gravity to achieve optimal performance.

Heatsink equipped with THERMALRIGHT Special design AGHP Heat Pipes is not affected by the mounting direction. This ensures user’s cooler experience in different computer case designs.

BALANCE PERFORMANCE TL-C12C FAN

Based on TL-C12 fan design, TL-C12C fan series achieve optimal balance between performance and noise output, therefore they are all-around fan for heatsink or radiator use scenarios. The motor is equipped with S-FDB bearing for smooth operation and long life span.

EXCELLENCE USER EXPERIENCE

Premium THERMALRIGHT TF-4 thermal paste is also included with CPU cooler for the best out-of-the-box performance. Redesigned Thermalright SS2 mounting system offers easy installation process and optimal mounting pressure.

Technical Spec :

• Heatsink Specifications:
• Dimension：L120 mm x W46 mm x H148 mm
• Weight：630g
• Heat pipes：6mm heatpipe x 4 units

TL-C12C FAN Spec：

• Dimension：L120 mm x W120 mm x H25 mm
• Weight：120g
• Rated Speed：1550 RPM±10% (MAX)
• Noise Level：25.6 dBA
• Air Flow：66.17 CFM (MAX)
• Air Pressure：1.53mm H2O (MAX)
• Ampere：0.20 A
• Connector：4 Pin (PWM Fan connector)
• ARGB Connector：3 PIN 5V
• Bearing Type : S-FDB Bearing
