Specification:

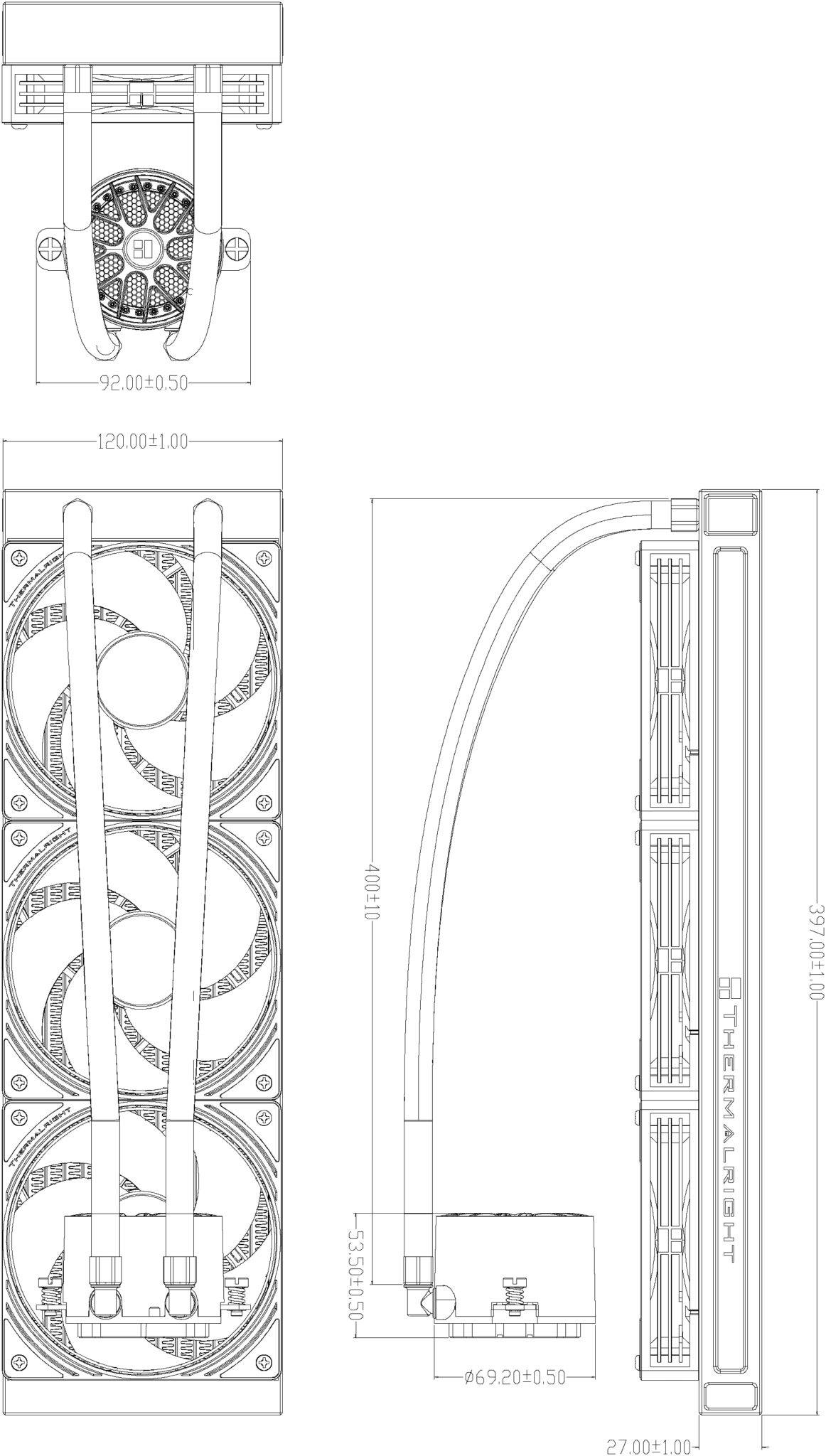

• Pump Dimensions：W69.2 mm x D69.2 mm x H53.5 mm
• Radiator Fimensions：L397 mm x W120 mm x H27 mm
• Pump Rated Speed：2800 RPM±10% (MAX)
• Pump Rated Voltage：12V DC
• Connector：4 PIN PWM
• ARGB Connector：3 PIN 5V
• Radiator：Aluminum
• Pump MTTF：40000 Hours
• Warranty：3 Years

Product Description
TL-N12W-R5-S SPECIFICATION：

• Dimension：L120 mm x W120 mm x H25 mm
• Rated Speed：2000 RPM±10% (MAX)
• Noise Level：29.8 dBA (MAX)
• Air Flow：70.84 CFM (MAX)
• Air Pressure：2.63 mm H2O (MAX)
• Connector：4 PIN PWM
• ARGB Connector：3 PIN 5V

Bearing Type：S-FDB Bearing
