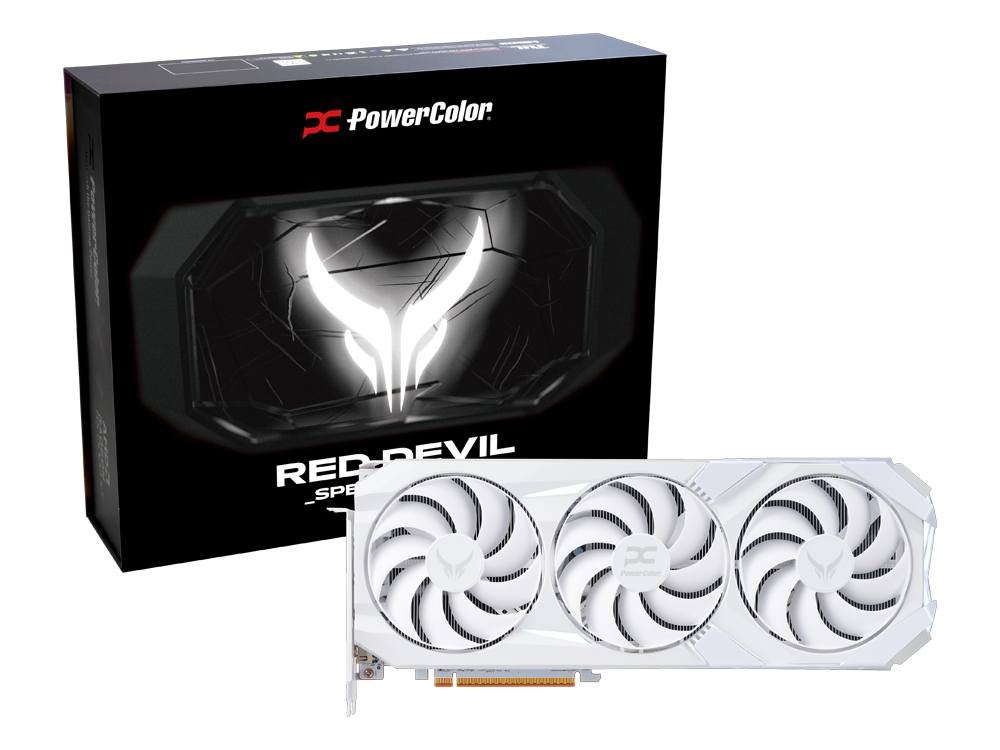

PowerColor Red Devil Radeon RX 9070 XT 16GB GDDR6 OC Graphics Card – White

Description

Quick Specifications

General
Chipset Manufacturer	AMD
AMD GPU Generation	Radeon RX 9000 Series
Model	Radeon RX 9070 XT
Interface Type	PCI Express 5.0
Graphics Card Memory	16GB
Memory Type	GDDR6
Memory Interface	256-Bit
Output	HDMI DisplayPort
DirectX Version Support	12
OpenGL Version Support	4.6
Recommended PSU (W)	900W
Power Connectors	8-pin x 3

Manufacturer Specifications

	SPECIFICATION
Graphics Engine	AMD Radeon™ RX 9070 XT
Model Name	RX9070XT 16G-E/OC/WHITE
Series	Red Devil
Stream Processor	4096 Units
Video Memory	16GB GDDR6
Memory Speed	20.0 Gbps
Memory Interface	256-bit
Engine Clock(OC)	up to 2520MHz(Game)¹
	up to 3060MHz(Boost)²
Engine Clock(STD/Silent)	up to 2460MHz(Game)¹
	up to 3010MHz(Boost)²
Bus Standard	PCIE 5.0 x16
Standard Display Connectors	1 x HDMI 2.1b，3 x DisplayPort 2.1a (only 2x simultaneous DP2.1 connections can be supported)
	Feature Support
DirectX® Support	12
OpenGL	4.6
AMD Eyefinity Technology	Support
AMD Stream Technology	Support
AMD Smart Access Memory	Support
	Maximum Resolution
DisplayPort	7680×4320
HDMI	7680×4320
	Power Specs + Board Dimensions
Board Dimensions	340m132mm69mm
	352mm149mm69mm(with bracket)
Slot	3
Minimum System Power requirement (W)	900W³
Extension Power Connector	Three 8-pin PCI Express Power connectors
Remark	¹Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
	²Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
	The entire information provided herein are for reference only.
	PowerColor reserves the right to modify or revise the content at anytime without prior notice.
	The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

5.0

based on 1 rating

5	☆
4	☆
3	☆
2	☆
1	☆

User Reviews (1)
Write Review

Performance has been top notch, great clock speeds and temperatures whilst remaining quiet in operation. Definitely one of the higher end 9070 XT models.

Excellent feature set, standouts being dual bios, RGB lighting with ARGB motherboard synchronisation and a 3x8p power connection.

Excellent packaging, presentation and accessories. A nicely designed support stand is included which is highly flexible in installation options and visually pleasing. You also receive a GPU removal tool, a cool looking key cap in the style of the GPU, an ARGB cable and an information flyer.

Quite a uniquely styled card with a glorious appearance. Definitely suited to a futuristic styled build aesthetic. They went all in with the white color theme, with practically every material on this card being white.

My only criticisms for this card:

Why oh why is the included ARGB cable black? Such a disappointment to an otherwise flawless presentation.

Whilst the hell stone and devil logo RGB effects are stunning, which sppear on the end and top of the card when mounted in the traditional horizontal orientation, it would have been nice to see additional RGB lighting on the front face of the card, seeing as this is typically the most viewed area.

Tip: You need to install the Keystone software from PowerColor to configure the card for ARGB lighting when using the supplied ARGB cable and connecting it to your motherboard. Once this is done, you may uninstall the Keystone software and the card will retain this setting. Out of the box the card will light static red and be configured to be RGB controllable only via the Keystone software.
