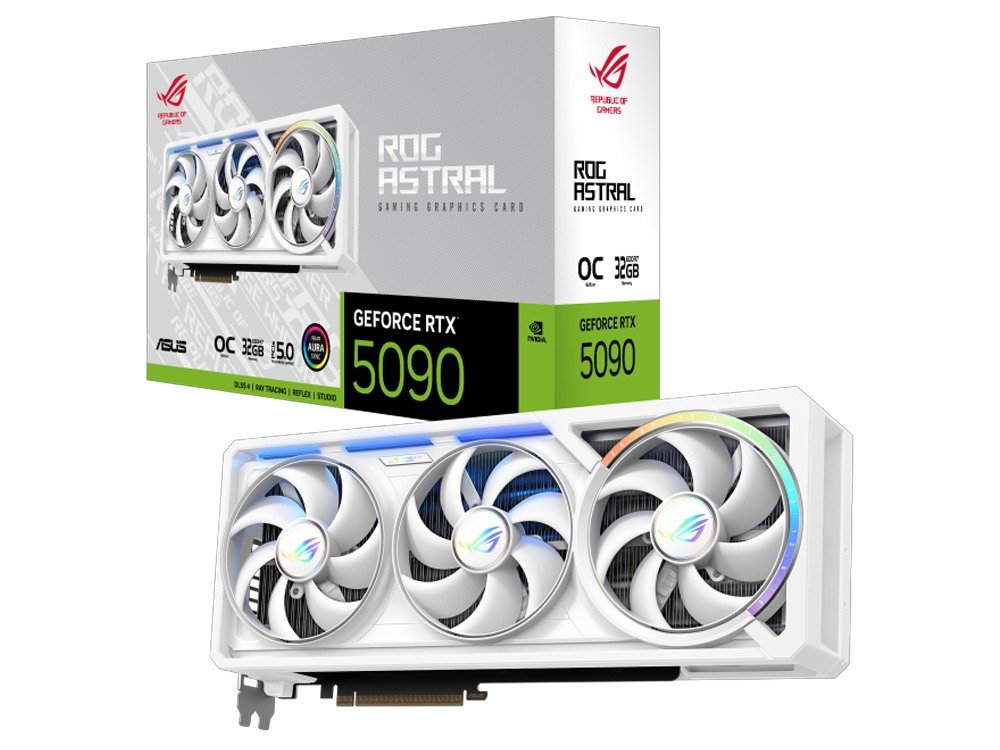

ASUS ROG Astral GeForce RTX 5090 32GB OC GDDR7 Graphics Card – White

Description

Quick Specifications

General
Chipset Manufacturer	Nvidia
NVIDIA GPU Generation	GeForce RTX 50 Series
Model	GeForce RTX 5090
Interface Type	PCI Express 5.0
Graphics Card Memory	32GB
Memory Type	GDDR7
Memory Interface	512-bit
Output	HDMI DisplayPort
Virtual Reality Ready	Yes
Digital Maximum Resolution	7680 x 4320
Maximum Displays	4
HDCP Support	2.3
OpenGL Version Support	4.6
Recommended PSU (W)	1000W
Power Connectors	16-pin x1

Manufacturer Specifications

MODEL	ROG Astral GeForce RTX™ 5090 32GB GDDR7 WHITE OC Edition
GRAPHIC ENGINE	NVIDIA® GeForce RTX™ 5090
AI PERFORMANCE	3593 TOPs
BUS STANDARD	PCI Express 5.0
OPENGL	OpenGL® 4.6
VIDEO MEMORY	32GB GDDR7
ENGINE CLOCK	OC mode: 2610 MHz Default mode: 2580 MHz (Boost clock)
CUDA CORE	21760
MEMORY SPEED	28 Gbps
MEMORY INTERFACE	512-bit
RESOLUTION	Digital Max Resolution 7680 x 4320
INTERFACE	Yes x 2 (Native HDMI 2.1b) Yes x 3 (Native DisplayPort 2.1b) HDCP Support Yes (2.3)
MAXIMUM DISPLAY SUPPORT	4
NVLINK/ CROSSFIRE SUPPORT	No
ACCESSORIES	1 x Speedsetup Manual 1 x ROG White Graphics Card Holder 1 x ROG White Velcro Hook & Loop 1 x ROG White Magnet 1 x ROG White Graphics Card Keycap 1 x ROG White PCB Ruler 1 x ROG Ring 1 x Thank You Card 1 x Adapter Cable (1 to 4)
SOFTWARE	ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
DIMENSIONS	357.6 x 149.3 x 76 mm 14.1 x 5.9 x 3 inch
RECOMMENDED PSU	1000W
POWER CONNECTORS	1 x 16-pin
SLOT	3.8 Slot
AURA SYNC	ARGB
NOTE	* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all mar not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on advertising or any other issues caused from using false specifications of ASUS products. * Maximum Display Support is specifically applied to simultaneous display situation.
