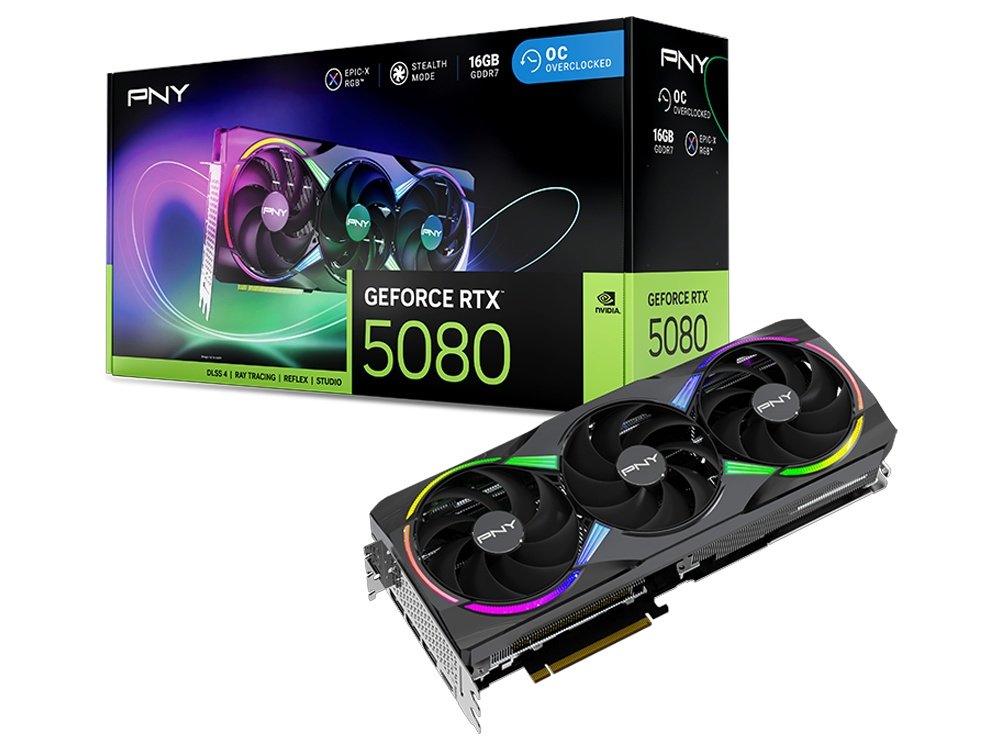

PNY EPIC-X RGB GeForce RTX 5080 Overclocked Triple Fan Graphics Card

Description

Quick Specifications

General
Chipset Manufacturer	Nvidia
NVIDIA GPU Generation	GeForce RTX 50 Series
Model	GeForce RTX 5080
Interface Type	PCI Express 5.0
Graphics Card Memory	16GB
Memory Type	GDDR7
Output	HDMI DisplayPort
Maximum Displays	4
Power Consumption (W)	360W
Recommended PSU (W)	850W
Power Connectors	16-pin x1

Manufacturer Specifications

PNY Part Number	VCG508016TFXPB1
Architecture	Blackwell
CUDA® Cores	10,752
Base Clock Speed	2.30 GHz
Boost Clock Speed	2.78 GHz
Memory Speed (Gbps)	30
Memory Size	16GB GDDR7
Memory Interface	256-bit
Memory Bandwidth (GB/sec)	Up to 960 GB/s
TDP	360 W
NVLink	Not Supported
Outputs	DisplayPort 2.1b (x3), HDMI 2.1b
Multi-Screen	4
Resolution	4K at 480Hz or 8K at 120Hz with DSC
Power Input	One 16-Pin (One 16-pin to Three 8-pin)
Bus Type	PCI-Express 5.0 x16
Card Dimensions	12.94″ x 5.42″ x 2.35″; 3 Slot

System Requirements

PCI Express-compliant motherboard with one 3-width x16 graphics slot
Three 8-pin supplementary power connectors
Total graphics power 360 W
Required system power 850 W²
Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
Internet connection¹

1 Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install.

2 Power requirements can be different depending on system configuration.

WARNING: This product contains chemicals including lead known in the state of California to cause cancer and/or reproductive harm, and birth defects or other reproductive harm.

ADVERTENCIA: Este producto contiene productos químicos reconocidos incluido el plomo reconocidos por el estado de California que provocan cáncer o daños reproductivo, defectos de nacimiento u otros daños reproductivos.

For more information: www.P65Warnings.ca.gov

® 2025 NVIDIA Corporation. NVIDIA, the NVIDIA logo, GeForce, GeForce RTX, and G-SYNC are registered trademarks and/or trademarks of NVIDIA Corporation in the United States and other countries. All other trademarks and copyrights are the property of their respective owners.

4.5

based on 66 ratings

5	☆
4	☆
3	☆
2	☆
1	☆

User Reviews (49)
Write Review

A fantastic card to add to any gaming PC. Plays every game at 4K using very high or ultra settings. The card can even auto overclock higher than original spec if needed. Highest have seen so far is 2977Mhz!!

Dynamic overclock allows card to exceed its rated specs

None

Great card. Very quiet and it is faster then most other 5080s.

I was going for a big card because I have a big case and it is massive.

Speed, price and temps

Its big, not a problem for me but if you have a small case it could be.

Probably the best RTX 5080 under $2000. Really its only $1800 if you factor in the free Borderlands 4. Boosts to over 2980mhz stock when most 5080s in this price range are only boosting to about 2750mhz. Has a triple slot cooling system and doesn’t ever go above 65c when under load. Can hit 3000mhz easily when OC’d. Has a lot of customisable ARGB if youre into that.

Boosts super high. Stays cool. Looks great.

Needs a big case. Nvidias 5000 series drivers still have a few issues with some games.
