Description
Quick Specifications
|
|
|
Manufacturer Specifications
|
Cooler Specification
|
|
|
Socket compatibility
|
Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 |
|
(Current socket compatibility applies to all coolers purchased since Q2 2022. For older coolers, please refer to this chart.) |
|
|

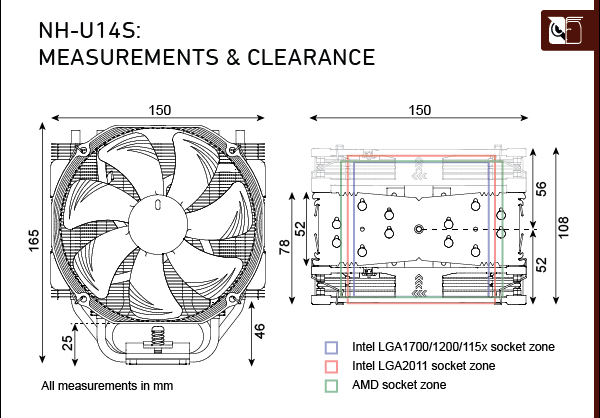

Height (without
fan) |
165 mm |
|
Width (without
fan) |
150 mm |
|
Depth (without
fan) |
52 mm |
|
Height (with
fan) |
165 mm |
|
Width (with fan)
|
150 mm |
|
Depth (with fan)
|
78 mm |
|
Weight (with
fan) |
935 g |
|
Material
|
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
|
NSPR
|
162 |
|
Max. TDP
|
see NSPR |
|
Fan
compatibility |
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 |
|
Scope of
delivery |
NF-A15 PWM premium fan |
| NA-RC7 Low-Noise Adaptor (L.N.A.) | |
| NT-H1 high-grade thermal compound | |
| SecuFirm2â„¢ mounting kit | |
| Anti-vibration pads and fan-clips for second NF-A15 | |
| Noctua Metal Case-Badge | |
|
Warranty
|
6 Years |
|
FAN Specification
|
|
|
Model
|
Noctua NF-A15 PWM |
|
Bearing
|
SSO2 |
|
Max. rotational
speed (+/- 10%) |
1500 RPM |
|
Max. rotational
speed with L.N.A. (+/- 10%) |
1200 RPM |
|
Min. rotational
speed @ 20% PWM (+/-20%) |
300 RPM |
|
Max. airflow
|
140,2 m³/h |
|
Max. airflow with L.N.A.
|
115,5 m³/h |
|
Max. acoustical
noise |
24,6 dB(A) |
|
Max. acoustical
noise with L.N.A. |
19,2 dB(A) |
|
Input power
(max.) |
1,56 W |
|
Voltage range
|
12 V |
|
MTTF
|
> 150.000 h
|
based on 630 ratingsThis score is based on all expert and user reviews that TestFreaks has collected for this product. Reviews and scores are collected from more than 30 countries but only reviews in selected languages are shown below.
| 5 | ☆ | |
| 4 | ☆ | |
| 3 | ☆ | |
| 2 | ☆ | |
| 1 | ☆ |
(Experts)
| 5 | ☆ | |
| 4 | ☆ | |
| 3 | ☆ | |
| 2 | ☆ | |
| 1 | ☆ |
(Users)
- Expert Reviews (12)
- User Reviews (301)
- Write Review
Powered by TestFreaks
MS
The build quality is great. However my last cooler was water based and although Noctua claim quietness, this is too loud for my liking. I do not like the revving up noise it makes when the cpu is doing some work. This would be ideal for a PC that is not busy and is fine most of the time.
If it keeps bothering me I will probably ditch this and replace with a water based cooler. Even a single fan water cooler will do.
Great Build quality. Does not obstruct RAM when installed.
Do not buy if you are used to a water cooler as it is not quiet.
