Description
Quick Specifications
|
|
|
Manufacturer Specifications
|
Product
Details |
|
|
Notes and
warnings |
Caution: Do not place directly on hard disk drives, keep at least 5cm distance. When powering via the 4-pin input from a PC motherboard, please check your motherboard manual for the maximum current of the fan header and make sure not to exceed it. |
|
Output
connectors |
8x 4-pin PWM |
|
Input connectors
|
1x S-ATA (for 12V fans only), 1x 4-pin PWM |
|
Max. power via
S-ATA input |
54 W |
|
Max. power via
4-pin PWM input |
24 W |
|
Operating
voltage |
5-12 V |
|
Operating
temperature |
-40°C to +60°C |
|
Flammability
class |
UL-94 V-0 |
|
Safety standards
|
EN 62368-1, EN 55035, EN 55032, UL-507 |
|
Certifications
|
CE, UKCA, UL |
|
Size
|
93x43x12.5 mm |
|
Weight
|
31 g |
|
Fan
compatibility |
All Noctua 12V and 5V fans, many third party fans |
|
Scope of
delivery |

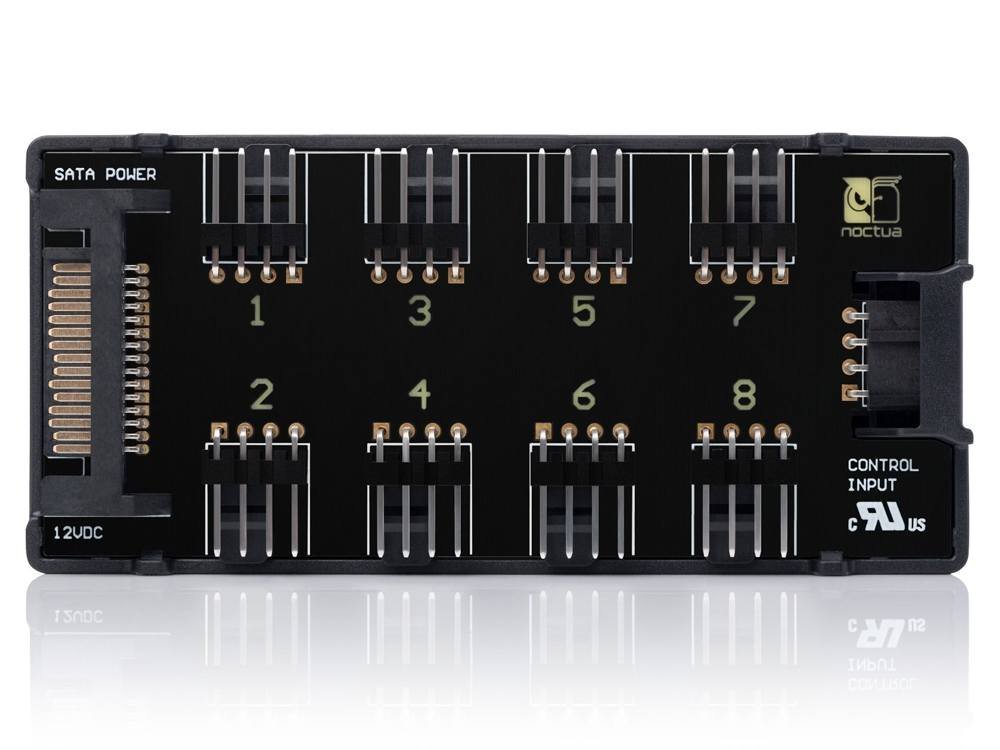

NA-FH1 fan hub |
| NA-EC1 4-pin PWM input cable | |
|
Warranty
|
6 years |
