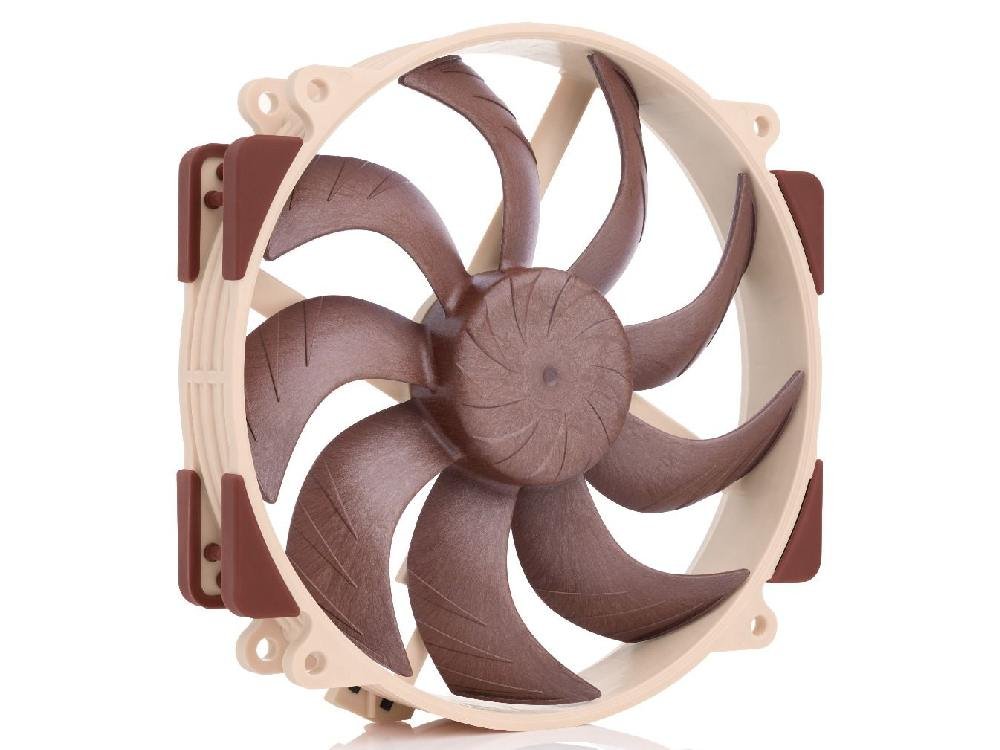

Noctua 140mm NF-A14x25r G2 PWM 1500RPM LCP Cooling Fan

Description

Quick Specifications

Case Fans
Fan Size	140mm

Manufacturer Specifications

Size	140x140x25 mm
Mounting hole spacing	105×105 mm
Connector & pin-configuration	4-pin PWM
Cable length	20cm + 30cm NA-EC1 extension cable
Bearing	SSO2
Blade geometry	Progressive-Bend impeller
Frame technology	AAO (Advanced Acoustic Optimisation)
Material	Sterrox® LCP
Rotational speed (+/- 10%)	1500 RPM
Rotational speed with L.N.A. (+/- 10%)	1250 RPM
Airflow	155,6 m³/h
Airflow with L.N.A.	127,1 m³/h
Acoustical noise	24,8 dB(A)
Acoustical noise with L.N.A.	19,7 dB(A)
Static pressure	2,56 mm H₂O
Static pressure with L.N.A.	1,3 mm H₂O
Input power (max.)	2,28 W
Max. input current	0,19 A
Operating voltage	12 V
Voltage PWM signal	5 V
MTTF	> 150.000 h
Scope of delivery	NA-RC16 Low-Noise Adaptor (L.N.A.)
	NA-YC1 4-pin PWM splitter cable
	NA-EC1 30cm extension cable
	4x NA-AV2 anti-vibration mounts
	Fan screws
Warranty	6 years
