Description
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| Essentials | |
|
Product Collection |

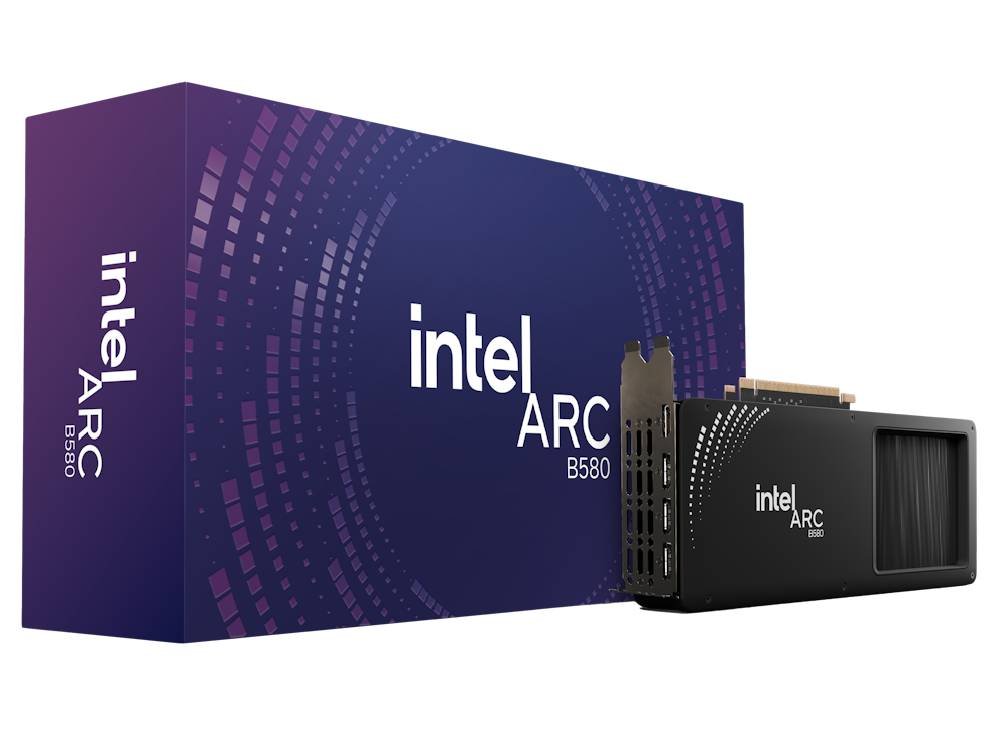

Intel® Arc™ B-Series Graphics
|
|
Model Number |
B580
|
|
Code Name |
Products formerly Battlemage
|
|
Microarchitecture
|
Xe2
|
|
Lithography Type |
TSMC N5
|
|
Vertical Segment |
Desktop
|
|
Marketing Status |
Launched
|
|
Launch Date |
Q4’24
|
|
Embedded Options Available |
No
|
|
GPU Specifications | |
|
Xe-cores
|
20
|
|
Render Slices |
5
|
|
Ray Tracing Units |
20
|
|
Intel® Xe Matrix Extensions (Intel® XMX) Engines |
160
|
|
Xe Vector Engines |
160
|
|
Graphics Clock |
2670 MHz
|
|
GPU Peak TOPS (Int8) |
233
|
|
TBP
|
190 W
|
|
PCI Express Configurations ‡ |
PCI Express 4.0 x8 |
|
Device ID |
0xE20B
|
|
Memory Specifications
| |
|
Memory
|
12 GB GDDR6
|
|
Graphics Memory Interface |
192 bit
|
|
Graphics Memory Bandwidth |
456 GB/s
|
|
Graphics Memory Speed |
19 Gbps
|
|
I/O Specifications
| |
|
# of Displays Supported‡ |
4
|
|
Graphics Output‡ |
HDMI* 2.1, DP2.1 up to UHBR 13.5, DP2.1 up to UHBR 10 |
|
HDMI Variable Refresh Rate (VRR) |
Yes
|
|
VESA Adaptive Sync |
Yes
|
|
Media Profiles |
HDR10, HDR10+ Gaming, Dolby Vision |
|
Max Resolution (HDMI)‡ |
7680 x 4320@120Hz
|
|
Max Resolution (DP)‡ |
7680 x 4320@60Hz
|
|
Features
| |
|
H.264 Hardware Encode/Decode |
Yes
|
|
H.265 (HEVC) Hardware Encode/Decode |
Yes
|
|
AV1 Encode/Decode |
Yes
|
|
VP9 Bitstream & Decoding |
Yes
|
|
Supported Technologies
| |
|
Ray Tracing |
Yes
|
|
oneAPI Support |
Yes
|
|
OpenVINO™ Support |
Yes
|
|
DirectX* Support |
DirectX 12 Ultimate |
|
Vulkan* Support |
1.3
|
|
OpenGL* Support |
Up to 4.6
|
|
OpenCL* Support |
3
|
|
Multi-Format Codec Engines |
2
|
|
Intel® Extension for PyTorch* (IPEX) Support |
Yes
|
|
Intel® Xe Super Sampling (XeSS) Support |
Yes
|
|
Intel Reference Card Attributes | |
|
Dimensions (Length x Width) |
272 x 115 mm
|
|
Slots
|
2
|
|
Weight
|
779 G
|
|
Minimum Power Supply Unit |
600 W
|
|
Power Connectors |
1 x 8-pin
|
All information provided is subject to change at any time, without notice. Intel may make changes to manufacturing life cycle, specifications, and product descriptions at any time, without notice. The information herein is provided “as-is” and Intel does not make any representations or warranties whatsoever regarding accuracy of the information, nor on the product features, availability, functionality, or compatibility of the products listed. Please contact system vendor for more information on specific products or systems.
Intel classifications are for general, educational and planning purposes only and consist of Export Control Classification Numbers (ECCN) and Harmonized Tariff Schedule (HTS) numbers. Any use made of Intel classifications are without recourse to Intel and shall not be construed as a representation or warranty regarding the proper ECCN or HTS. Your company as an importer and/or exporter is responsible for determining the correct classification of your transaction.
Refer to Datasheet for formal definitions of product properties and features.
‡ This feature may not be available on all computing systems. Please check with the system vendor to determine if your system delivers this feature, or reference the system specifications (motherboard, processor, chipset, power supply, HDD, graphics controller, memory, BIOS, drivers, virtual machine monitor-VMM, platform software, and/or operating system) for feature compatibility. Functionality, performance, and other benefits of this feature may vary depending on system configuration.
“Announced” SKUs are not yet available. Please refer to the Launch Date for market availability.
**Designed for DP2.0, certification pending VESA CTS Release.
| 5 | ☆ | |
| 4 | ☆ | |
| 3 | ☆ | |
| 2 | ☆ | |
| 1 | ☆ |
- User Reviews (2)
- Write Review
The Intel ARC B580 is a low cost Budget Marketed Graphics Card but can handle some high end games. I have paired this GPU with the Intel Core Ultra 9 285K and I couldn’t be Happier with the choice.
found no issues in performance no bottlenecking.
I have this Graphics Card connected to the Samsung CRG90 49 Inch Monitor running @ 2560×1440 and testing @ 5120×1440 with no issues runs both resolutions @ 60FPS without issues.
would Highly Recommend
