Description

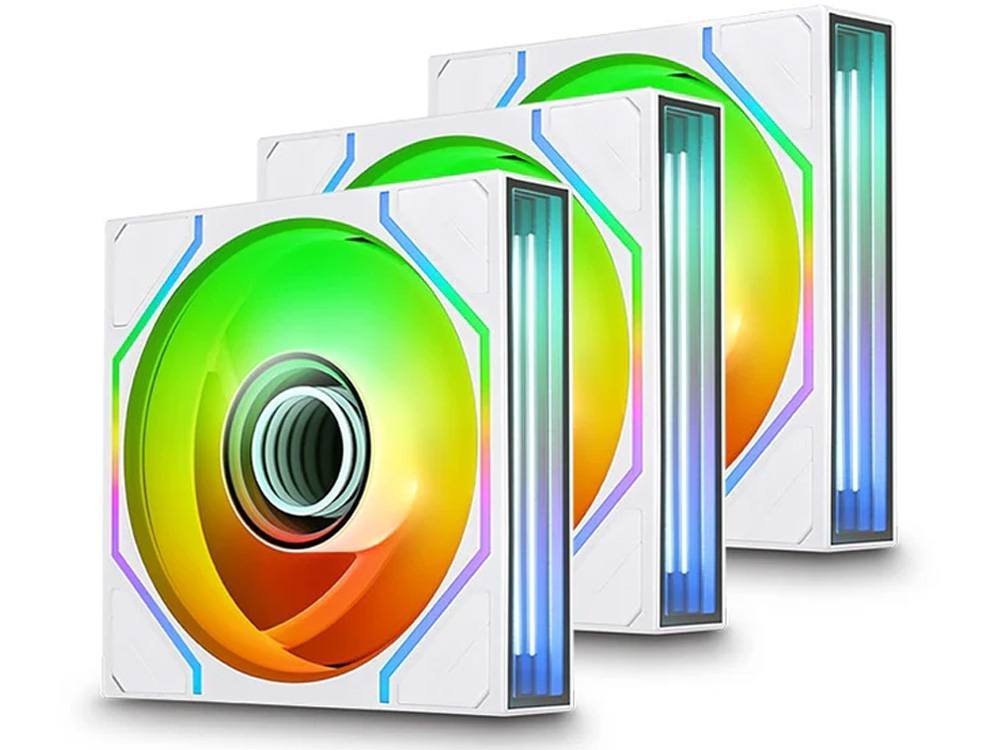

The Thermaltake SWAFAN 120 EX INFINITY ARGB Sync Snow Edition combines MAGForce 2.0 magnetic daisy-chaining with swappable standard and reverse blades, allowing you to configure intake or exhaust airflow without hiding the dual infinity mirror lighting. This 3-pack of 120mm white fans provides the hardware needed to build a visually uniform cooling setup with minimal cable clutter.
Swappable Blades for Uncompromised Airflow Direction
Instead of forcing builders to choose between optimal airflow and aesthetics, the SWAFAN 120 EX includes three standard fan blades and three reverse fan blades in the box. Pushing the standard blades out and snapping the reverse blades into the hydraulic bearing allows the fan to pull air into the chassis while keeping the infinity mirror front-facing. The standard blades deliver up to 58.13 CFM of airflow and 2.86 mm-H2O of static pressure at 30 dBA, while the reverse blades maintain a highly competitive 56.15 CFM and 2.23 mm-H2O at 32 dBA.
MAGForce 2.0 Magnetic Daisy-Chaining
Managing multiple ARGB and PWM cables can complicate a build. The MAGForce 2.0 magnetic quick connection system allows all three fans in this pack to click together physically and electrically. A single cable handles the 12V PWM power and 5V ARGB signals for the entire cluster, drastically reducing cable routing behind the motherboard tray and ensuring a clean aesthetic inside the main chamber.
Dual Infinity Mirror ARGB Lighting
Designed for all-white PC builds, the Snow Edition features a stark white 28mm thick frame that reflects the integrated lighting. The dual infinity mirror design creates a deep, layered lighting effect visible from multiple angles. Because the fans use a standard 5V 3-pin ARGB interface, the lighting can be controlled and synchronized directly through compatible motherboard software without requiring a proprietary USB controller.
PWM Speed Control and Longevity
The fans operate on a PWM curve from 500 to 2000 RPM, allowing the motherboard to scale cooling performance based on system temperatures. At idle, the 500 RPM minimum ensures quiet operation, while the 2000 RPM maximum provides substantial airflow for heavy workloads. Built around a hydraulic bearing rated for a 40,000-hour life expectation at 25°C, the fans are backed by a 2-year warranty for long-term reliability.
| Fan Dimension | 124 x 120 x 28 mm |
|---|---|
| Interface | 2510-4 Pin / 5V ARGB header-3 Pin |
| Fan Started Voltage | 6 V |
| Fan Rated Voltage | 12 V & 5V |
| Rated Current | 12V: 0.3 A / 5V: 0.8 A (one fan) |
| Power Input | 12V: 3.6 W / 5V: 4 W (one fan) |
| Fan Speed | PWM 500 ~ 2000 RPM |
| Max Air Pressure (Standard Blade) | 2.86 mm-H2O |
| Max Air Pressure (Reverse Blade) | 2.23 mm-H2O |
| Max Air Flow (Standard Blade) | 58.13 CFM |
| Max Air Flow (Reverse Blade) | 56.15 CFM |
| Noise (Standard Blade) | 30 dBA |
| Noise (Reverse Blade) | 32 dBA |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs at 25°C |
| Included Items | 3x Fans, 3x Cables, 3x Reverse Fan Blades |
| Color | White |
| Lighting | Dual Infinity Mirror ARGB |
| Connection Type | MAGForce 2.0 Magnetic Quick Connection |
| Warranty | 2 Year |
