Description
Quick Specifications
| | |
| | |
Manufacturer Specifications
|

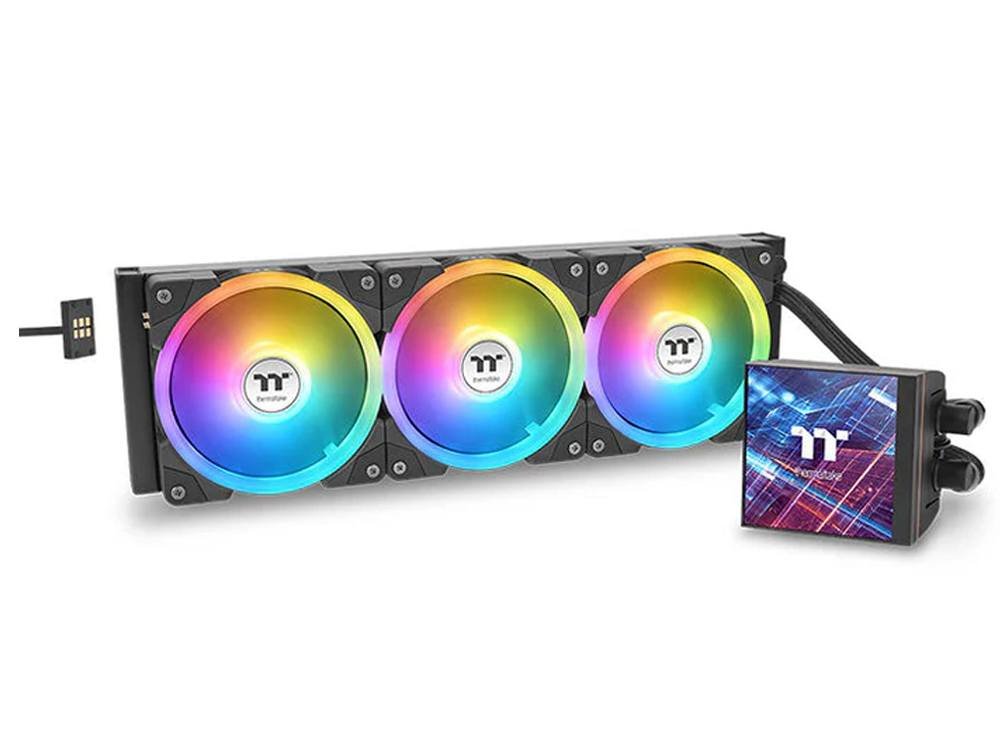

P/N
| CL-W432-PL12SW-A |
| Pump |
Motor Speed : PWM 1500~3300 RPM |
|
Rated Voltage : 12V | |
|
Rated Current : 0.43A | |
|
Power Input : 5.16W | |
| CPU Display |
Rated Voltage : 5V |
|
Rated Current : 0.26A | |
|
Power Input : 1.3W | |
|
Display Type : 3.95″TFT-LCD | |
|
Display Resolution : 480×480 (RGB) px | |
| Display Support |
Interface : Micro USB to USB (9PIN) |
|
System Compatibility : Windows 10 / 11 | |
| Water Block | Material : Copper |
| Fan |
Dimension : 120 x 120 x 25 mm |
|
Fan Speed : PWM 500~2000 R.P.M | |
|
Rated Voltage : 12V/5V | |
|
Rated Current : 0.27 A & 0.72 A (one fan) | |
|
Power Input : 3.24 W & 3.6 W (one fan) | |
| Air Flow : | |
|
Standard Fan Blade : 57.11 CFM (one fan) | |
|
Reverse Fan Blade : 56.26 CFM (one fan) | |
|
Static Pressure : | |
|
Standard Fan Blade : 2.39 mm-H2O (one fan) | |
|
Reverse Fan Blade : 2.02 mm-H2O (one fan) | |
|
Noise Level : | |
|
Standard Fan Blade : 30.6 dB-A (one fan) | |
|
Reverse Fan Blade : 32.5 dB-A (one fan) | |
| Tube | Length : 460mm |
|
Material : Rubber | |
| Radiator |
Dimension : 396 x 120 x 27 mm |
|
Material : Aluminum | |
| Compatibility |
Intel LGA 2066/2011-3/2011/1851/1700 |
| 1200/1156/1155/1151/1150 | |
|
AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 |
