Technical Spec :

• Heatsink Specifications:

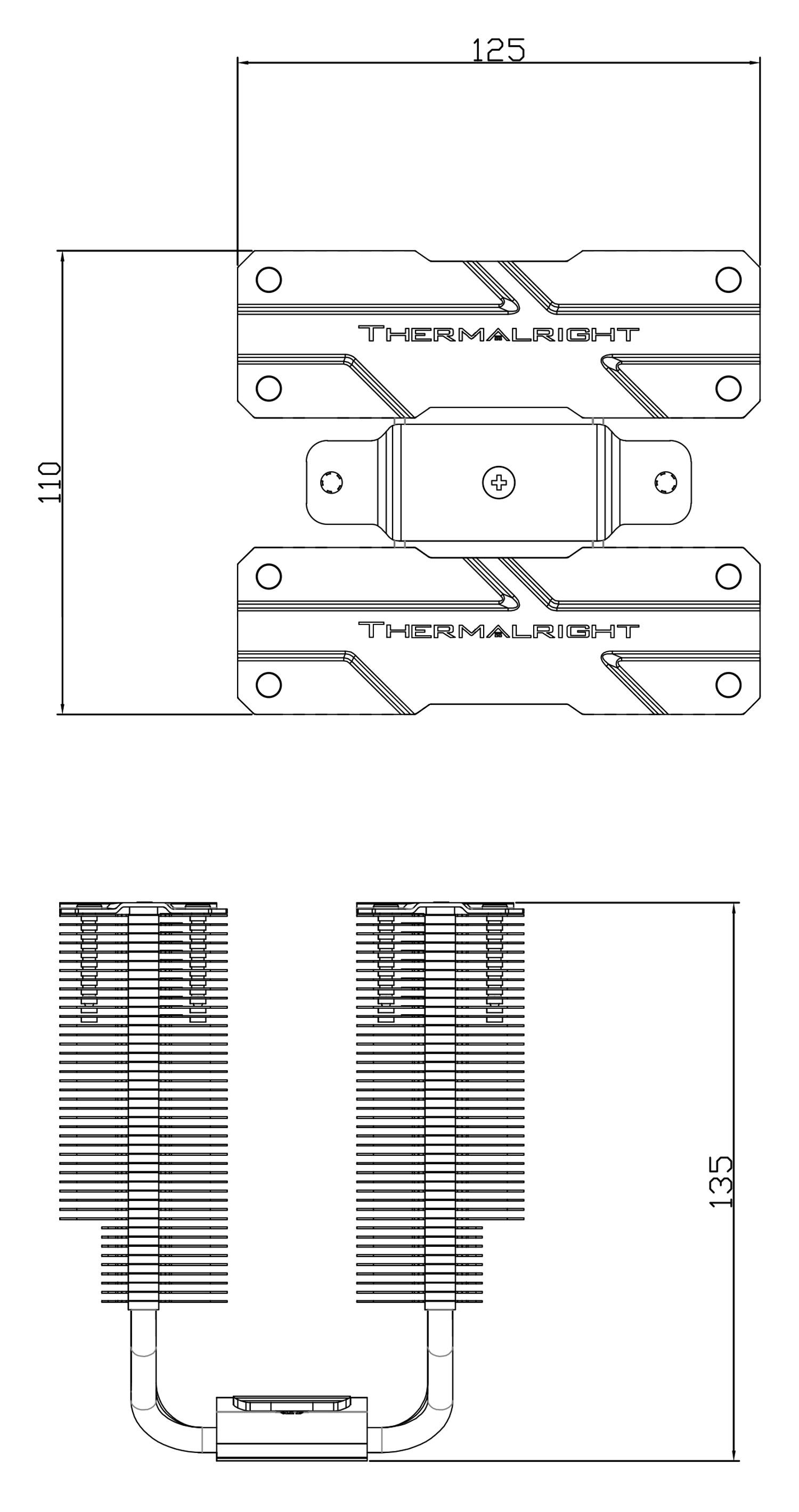

• Dimension：L125 mm x W110 mm x H135 mm
• Weight：700g
• Heat pipes：6mm heatpipe x 6 units
• Copper Base：C1100 Pure copper nickel plated

TL-D12W FAN Spec：

• Dimension：L120 mm x W120 mm x H25 mm
• Weight：120g
• Rated Speed：1500 RPM±10% (MAX)
• Noise Level：25.6 dBA
• Air Flow：66.87 CFM (MAX)
• Air Pressure：1.53 mm H2O (MAX)
• Ampere：0.20 A
• Connector：4 Pin (PWM Fan connector)
• Bearing Type : S-FDB Bearing
