Technical Spec :

• Heatsink Specifications:

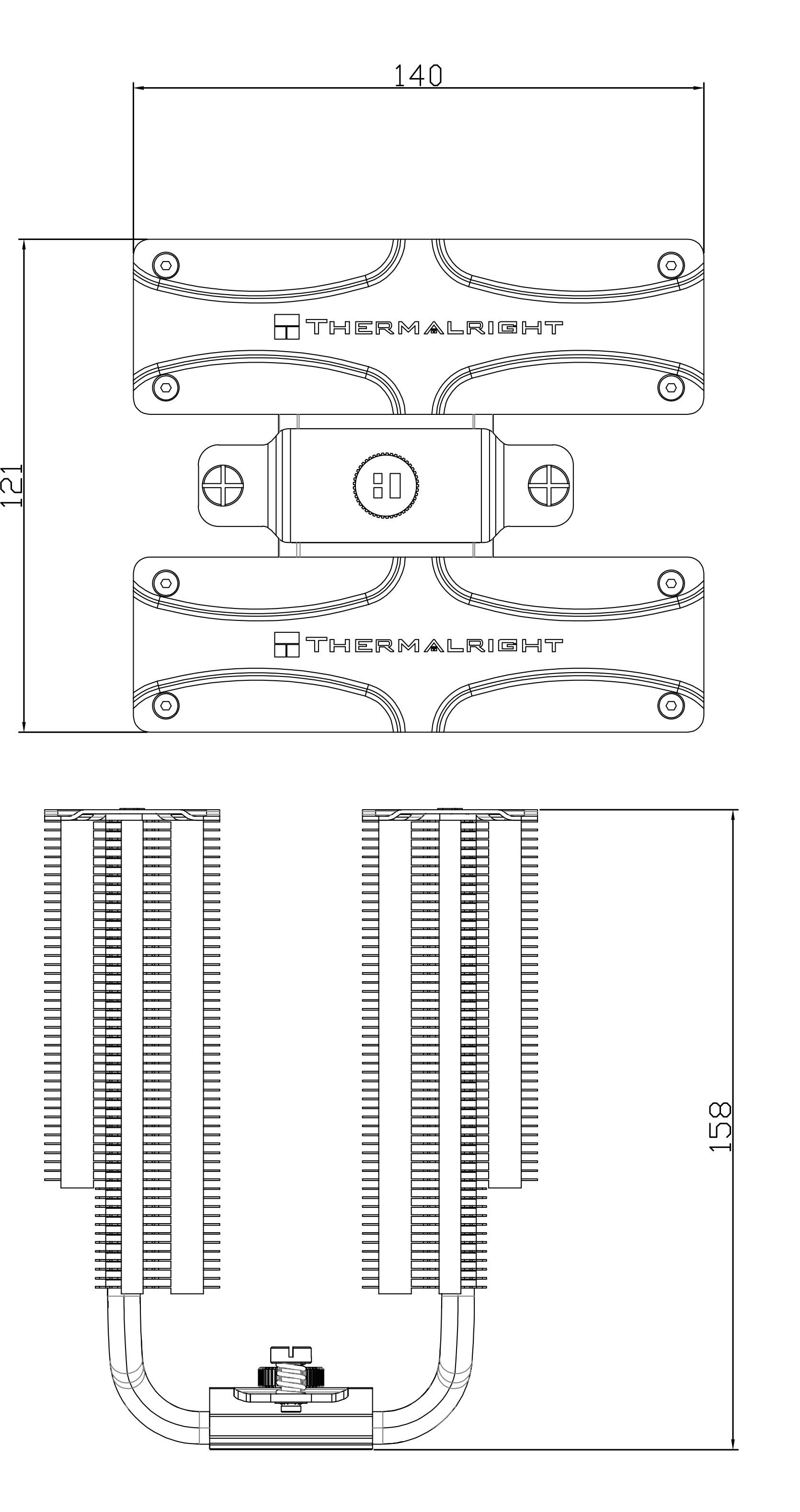

• Dimension：L140 mm x W121 mm x H158 mm
• Weight：1000g
• Heat pipes：8mm heatpipe x 5 units
• Fin：T = 0.4 mm；Gap=1.8 mm
• Copper Base：C1100 Pure copper nickel plated

TL-C12 Pro-G FAN Spec：

• Dimension：L120 mm x W120 mm x H25 mm
• Weight：165g
• Rated Speed：1850 RPM±10% (MAX)
• Noise Level：29.6 dBA
• Air Flow：82 CFM (MAX)
• Air Pressure：2.1mm H2O (MAX)
• Ampere：0.25 A
• Connector：4 Pin (PWM Fan connector)
• Bearing Type : S-FDB V2 Bearing

TL-D14X FAN Spec：

• Dimension：L140 mm x W152 mm x H27 mm
• Weight：175g
• Rated Speed：1800 RPM±10% (MAX)
• Noise Level：30.2 dBA
• Air Flow：95.5 CFM (MAX)
• Air Pressure：2.25mm H2O (MAX)
• Ampere：0.30 A
• Connector：4 Pin (PWM Fan connector)
• Bearing Type : S-FDB V2 Bearing
