Description

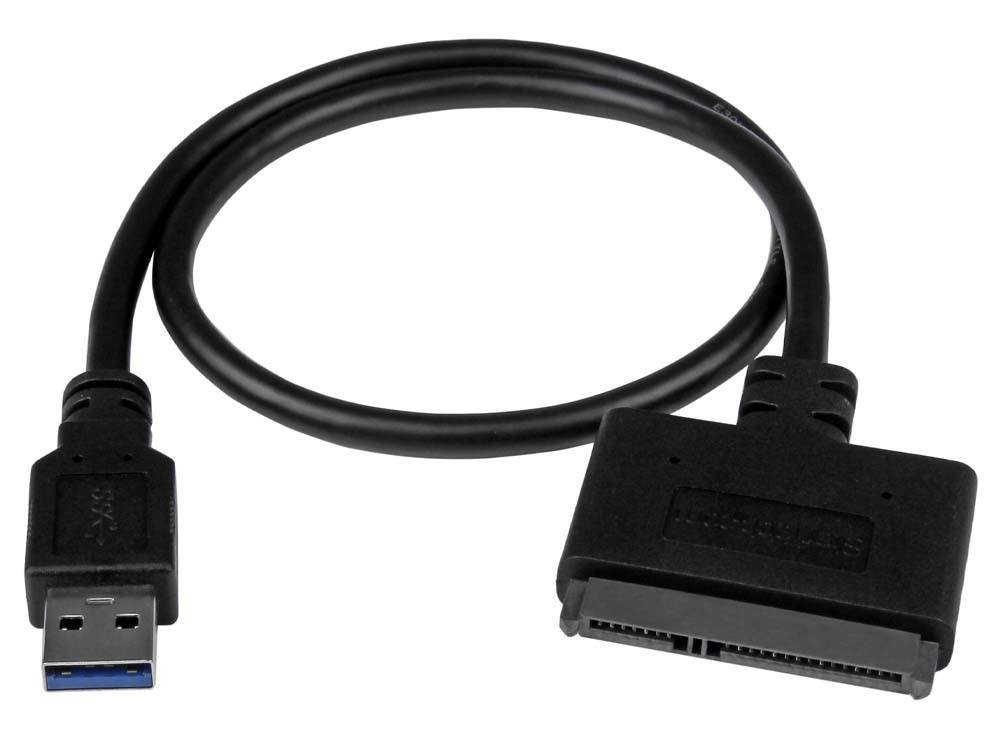

Here’s a fast, easy way to access data on a 2.5″ solid-state or hard drive. This cable-style adapter lets you connect your laptop or desktop computer directly to a solid-state drive and access it through ultra-fast USB 3.1 Gen. 2 (up to 10 Gbps).
Convenient drive access
With the adapter cable, you can quickly swap hard drives without having to install your drives into an enclosure. You can copy or retrieve data from a 2.5″ SSD/HDD quickly with no additional accessories required. It gives you easy drive access for data migration, drive cloning and data backup applications, with the fast performance of USB 3.1 Gen 2.
Harness the speed of USB 3.1 Gen 2
USB 3.1 Gen 2 gives you greater bandwidth and speed with rates of up to 10 Gbps – twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
Ultra-portable with no external power required
This cable-style adapter features a compact, lightweight design that tucks easily into a laptop bag or carrying case. Use it wherever you go to access valuable data quickly – with no external power required.
Note: This product is not compatible with 3.5 in. hard drives. For 3.5 in. drive support, please see our USB to SATA Cable with Supplemental Power (USB312SAT3).
The USB312SAT3CB is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- Technicians who need a quick, easy way to access data on 2.5” hard drives
- Take advantage of the faster speed of USB 3.1 Gen 2 (10 Gbps)
- Access any 2.5″ hard drive or solid-state drive from any USB enabled computer, for data migration or drive cloning
- Back up important data to an external storage device
- Retrieve data from an old SATA drive
| Compatibility |
OS independent; No software or drivers required |
|
|
Specifications
|
||
|
Warranty
Information |
Warranty |
2 Years |
| Connector(s) |
1 – Drive Connectors |
SATA Data & Power Combo (7+15 pin) |
|
1 – Host Connectors |
USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) |
|
| Environmental |
Operating Temperature |
0°C to 70°C (32°F to 158°F) |
|
Storage Temperature |
-10°C to 55°C (14°F to 131°F) |
|
| Humidity |
40% ~ 50% RH |
|
| Hardware | Interface |
USB 3.1 Gen 2 |
|
Bus Type |
USB 3.1 Gen 2 |
|
|
Number of Drives |
1 | |
|
Drive Size |
2.5in | |
|
Compatible Drive Types |
SATA | |
|
Number of 2.5 inch bays |
1 | |
|
Chipset ID |
ASMedia – ASM235CM |
|
| Packaging Information |
Shipping (Package) Weight |
1.8 oz [52.0 g] |
|
Package Length |
8.7 in [22.0 cm] |
|
|
Package Width |
7.8 in [19.8 cm] |
|
|
Package Height |
0.4 in [1.0 cm] |
|
| Performance |
Maximum Data Transfer Rate |
10 Gbps |
|
Type and Rate |
USB 3.1 Gen 2 – 10 Gbit/s |
|
|
UASP Support |
Yes | |
|
4Kn Support |
Yes | |
|
TRIM Support |
Yes | |
|
Hardware Raid Supported |
No | |
|
Max Drive Capacity |
Currently tested with hard drives up to 2TB at 7200 RPM |
|
|
Hot Swap Capability |
Yes | |
| MTBF |
1,665,032 hours |
|
| Physical Characteristics |
Weight of Product |
1.4 oz [39.0 g] |
| Color | Black | |
| Material | Plastic | |
|
Product Length |
20.3 in [51.5 cm] |
|
|
Product Width |
1.8 in [4.5 cm] |
|
|
Product Height |
0.3 in [8.0 mm] |
|
| Power |
Power Source |
USB-Powered |
| Software |
OS Compatibility |
OS independent; No software or drivers required |
| Special Notes / Requirements | Note |
Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. |
| What’s in the Box |
1 – Included in Package |
USB 3.1 to SATA 2.5″ HDD adapter cable |
|
quick start guide |
||
