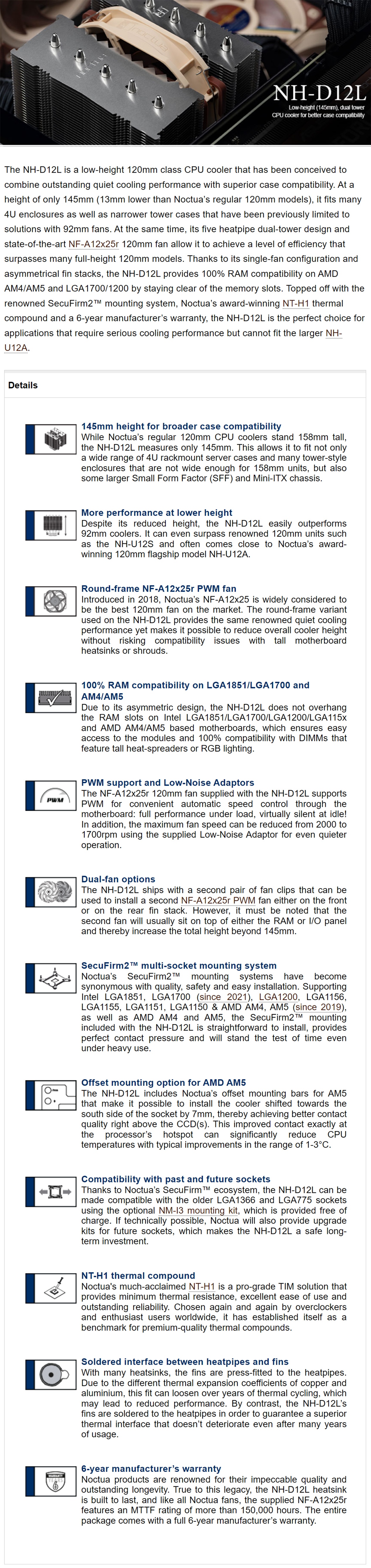

Description
Quick Specifications
|
|
|
Manufacturer Specifications
|
Cooler Specification
|
|
|
Socket compatibility
|
Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 |
|
Height (without
fan) |
145 mm |
|
Width (without
fan) |
125 mm |
|
Depth (without
fan) |
113 mm |
|
Weight (without
fan) |
700 g |
|
Height (with
fan) |
145 mm |
|
Width (with fan)
|
125 mm |
|
Depth (with fan)
|
113 mm |
|
Weight (with
fan) |
890 g |
|
Material
|
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
|
NSPR
|
148 |
|
Max. TDP
|
see NSPR |
|
Fan
compatibility |
NF-A12x25r (square-frame 120mm fans not supported) |
|
Scope of
delivery |
NF-A12x25r PWM premium fan |
| NA-RC14 Low-Noise Adaptor (L.N.A.) | |
| NT-H1 high-grade thermal compound | |
| Fan-clips for second NF-A12x25r | |
| SecuFirm2â„¢ mounting kit | |
| Noctua metal case-badge | |
|
Warranty
|
6 Years |
|
FAN Specification
|
|
|
Model
|
Noctua NF-A12x25r PWM |
|
Bearing
|
SSO2 |
|
Max. rotational
speed (+/- 10%) |
2000 RPM |
|
Max. rotational
speed with L.N.A. (+/- 10%) |
1700 RPM |
|
Min. rotational
speed @ 20% PWM (+/-20%) |
450 RPM |
|
Max. airflow
|
102,1 m³/h |
|
Max. airflow with L.N.A.
|
84,5 m³/h |
|
Max. acoustical
noise |
22,6 dB(A) |
|
Max. acoustical
noise with L.N.A. |
18,8 dB(A) |
|
Voltage range
|
12 V |
|
MTTF
|
> 150.000 h |
based on 1 rating
| 5 | ☆ | |
| 4 | ☆ | |
| 3 | ☆ | |
| 2 | ☆ | |
| 1 | ☆ |
