Description
Quick Specifications
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Manufacturer Specifications

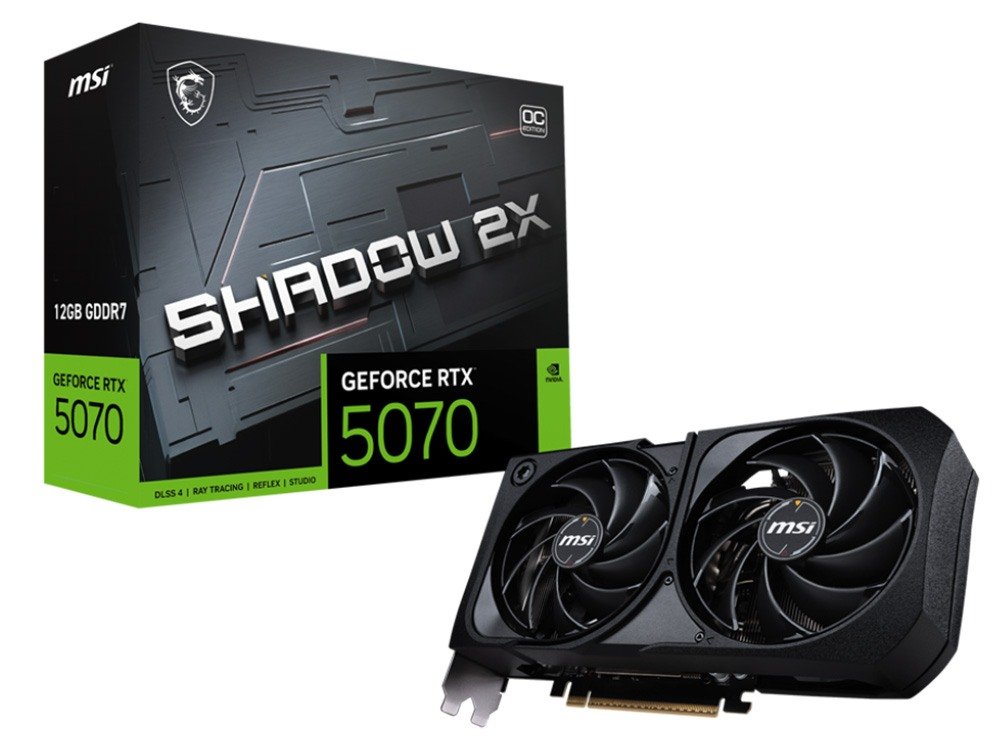

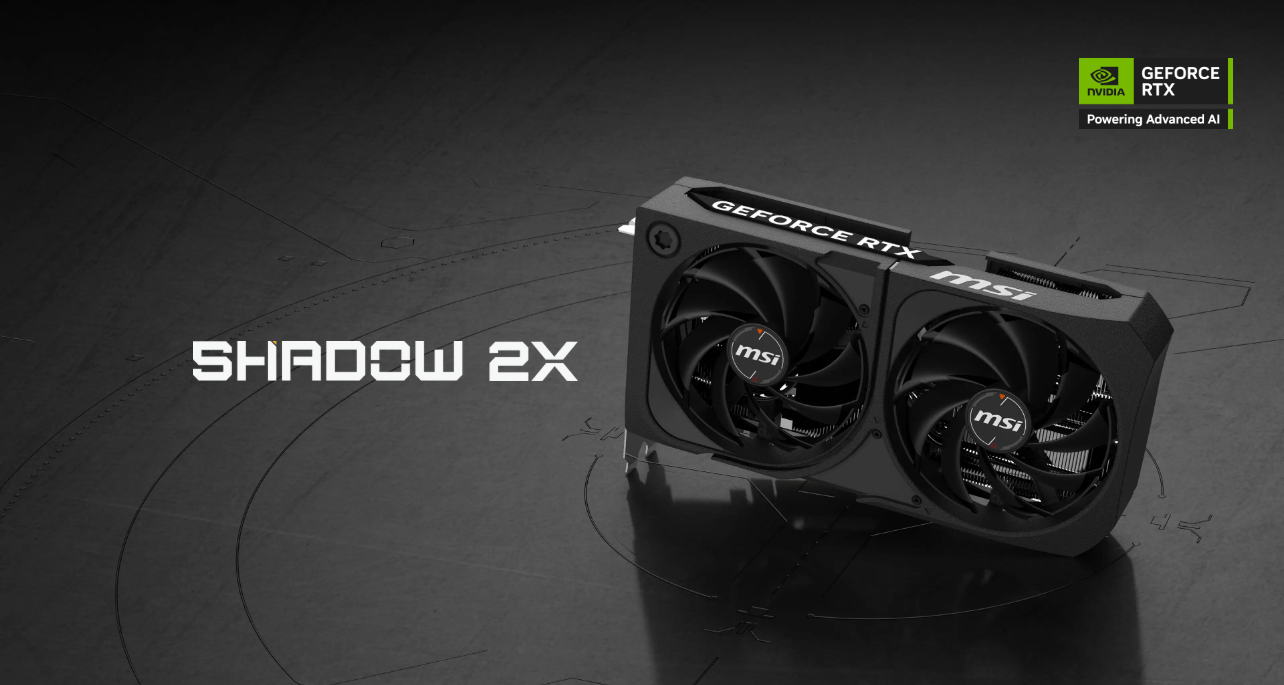

| Marketing Name |
GeForce RTXâ„¢ 5070
12G SHADOW 2X OC |
| Model Name |
G5070-12S2C
|
| Graphics Processing Unit |
NVIDIA® GeForce RTX™ 5070
|
| Interface |
PCI Express® Gen 5
|
| Core Clocks |
Extreme Performance: 2557 MHz (MSI Center)
|
| Boost: 2542 MHz | |
| CUDA® CORES |
6144 Units
|
| Memory Speed |
28 Gbps
|
| Memory |
12GB GDDR7
|
| Memory Bus |
192-bit
|
| Output |
DisplayPort x 3 (v2.1b)
|
|
HDMIâ„¢ x 1 (As specified in HDMIâ„¢ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
|
| HDCP Support |
Y
|
| Power consumption |
250 W
|
| Power connectors |
16-pin x 1
|
| Recommended PSU |
650 W
|
| Card Dimension (mm) |
231 x 126 x 50 mm
|
| Weight (Card / Package) |
724 g / 1107 g
|
| DirectX Version Support |
12 Ultimate
|
| OpenGL Version Support |
4.6
|
| Maximum Displays |
4
|
| G-SYNC® technology |
Y
|
|
Digital Maximum Resolution
|
7680 x 4320
|
