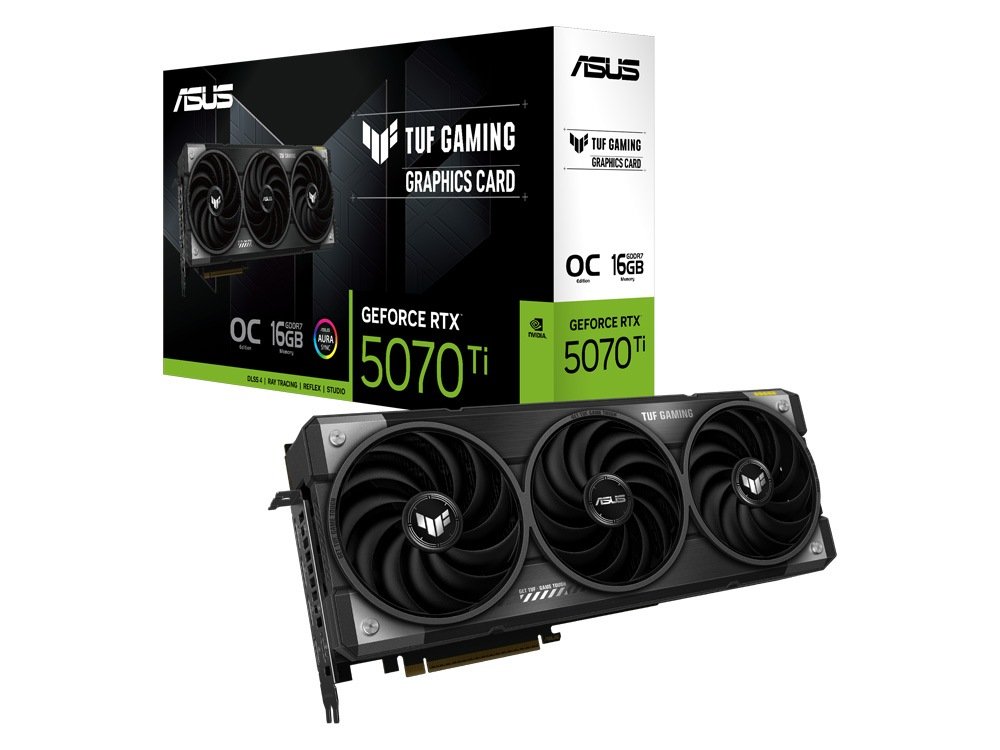

ASUS TUF GeForce RTX 5070 Ti 16GB GDDR7 OC Edition Graphics Card

Description

Quick Specifications

General
Chipset Manufacturer	Nvidia
NVIDIA GPU Generation	GeForce RTX 50 Series
Model	GeForce RTX 5070 Ti
Interface Type	PCI Express 5.0
Graphics Card Memory	16GB
Memory Type	GDDR7
Memory Interface	256-Bit
Output	HDMI DisplayPort
Digital Maximum Resolution	7680 x 4320
Maximum Displays	4
HDCP Support	2.3
OpenGL Version Support	4.6
Recommended PSU (W)	850W
Power Connectors	16-pin x1

Manufacturer Specifications

Model	TUF-RTX5070TI-O16G-GAMING
Graphic Engine	NVIDIA® GeForce RTX™ 5070 Ti
AI Performance	1484 TOPs
Bus Standard	PCI Express 5.0
OpenGL	OpenGL®4.6
Video Memory	16GB GDDR7
Engine Clock	OC mode: 2610MHz
	Default mode: 2588MHz (Boost Clock)
CUDA Core	8960
Memory Speed	28 Gbps
Memory Interface	256-bit
Resolution	Digital Max Resolution 7680 x 4320
Interface	Yes x 2 (Native HDMI 2.1b)
	Yes x 3 (Native DisplayPort 2.1b)
	HDCP Support Yes (2.3)
Maximum Display Support	4
NVlink/ Crossfire Support	No
Accessories	1 x Speedsetup Manual
	1 x TUF Graphics Card Holder
	1 x TUF Velcro Hook & Loop
	1 x TUF Magnet
	1 x TUF Gaming Certificate
	1 x Thank You Card
	1 x Adpater Cable (1 to 3)
	1 x Speedsetup Manual
	1 x TUF Graphics Card Holder
	1 x TUF Velcro Hook & Loop
	1 x TUF Magnet
	1 x TUF Gaming Certificate
	1 x Thank You Card
	1 x Adpater Cable (1 to 3)
Software	ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions	329 x 140 x 62.5 mm
	12.95 x 5.51 x 2.46 inch
	329 x 140 x 62.5 mm
	12.95 x 5.51 x 2.46 inch
Recommended PSU	850W
Power Connectors	1 x 16-pin
Slot	3.125 Slot
AURA SYNC	ARGB
Note	* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
	* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
	* Maximum Display Support is specifically applied to simultaneous display situation.
	* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
	* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
	* Maximum Display Support is specifically applied to simultaneous display situation.

5.0

based on 3 ratings

5	☆
4	☆
3	☆
2	☆
1	☆

User Reviews (3)
Write Review

The ASUS TUF 5070 Ti OC has handled every game at 1440p with ease so far and even performs surprisingly well at 4K. The card feels sturdy and well-built, and its temperatures stay nice and cool under load, it’s also really quiet. The higher cost of the card feels justified by the overall performance and build quality.

The performance of this card is insane, 1440p highest settings hitting 400 fps in some games and handling heavy games with ease. Went from a 4060 to this and easily 10x the performance, super happy! The card itself is great quality and looks mint, though the centre fan does have a slight sound above 60% usage, but I’ve just adjusted the fans via the GPU Tweak 3 software so the two others are ramped up faster than the centre so I never actually hear that noise.
Would recommend using the included support to prevent sagging, and using a PSU that has the 600w connector built in for wiring simplicity.

Performance, Aesthetics, Adjustability (with softwares)

QC on the fans

This Graphics card is insane, only got it the other day and have tried out a handful of games, I have got everything turned up to the best quality and nothing even causes any issues at all, going from a 650ti to a 5070ti, this is way next level awesome. Love it, never leaving my room!
